.....01 / CRUSHERS
Capital equipment,
engineered to your
circuit.
Crushers, mills, screens and other capital equipment — designed by Kenmore engineers and supplied as individual machines or as part of a project, where we deliver fully integrated circuits. Every machine is sized to your ore, your throughput and your duty cycle, not pulled off a generic catalogue.
Jaw Crushers
A modular, weld-free frame structure built for the toughest African ores — abrasive, hard and high-moisture. Cast steel components and premium spherical roller bearings deliver high fatigue resistance and a long, reliable service life across primary and secondary duty.
Feed opening
from 800×510 mm to 2,000×1,500 mm
Power
from 75 kW to 400 kW
Max. capacity
from 65 t/h to 1,460 t/h
Application
Primary, secondary
.....01 / CRUSHERS
Cone Crushers
Secondary and tertiary crushers for hard and medium-hard ores. Available in standard and short-head configurations across hydraulic and single-cylinder hydraulic ranges — with automatic overload protection, CSS adjustment and consistent product gradation across the full capacity range.
Feed size
from 35 mm to 460 mm
Power
from 22 kW to 750 kW
Max. capacity
from 9 t/h to 2,181 t/h
Application
Secondary, tertiary
.....01 / CRUSHERS
Gyratory Crushers
Primary crushers engineered for high-tonnage operations handling large feed sizes. Continuous compressive crushing within a circular chamber gives high throughput and low energy per tonne — well suited to large-scale production plants and high-capacity quarry operations.
Feed size
from 1,066 mm to 1,525 mm
Power
from 450 kW to 1,500 kW
Max. capacity
from 5,250 t/h to 17,000 t/h
Application
Primary crushing
.....02 / MILLS

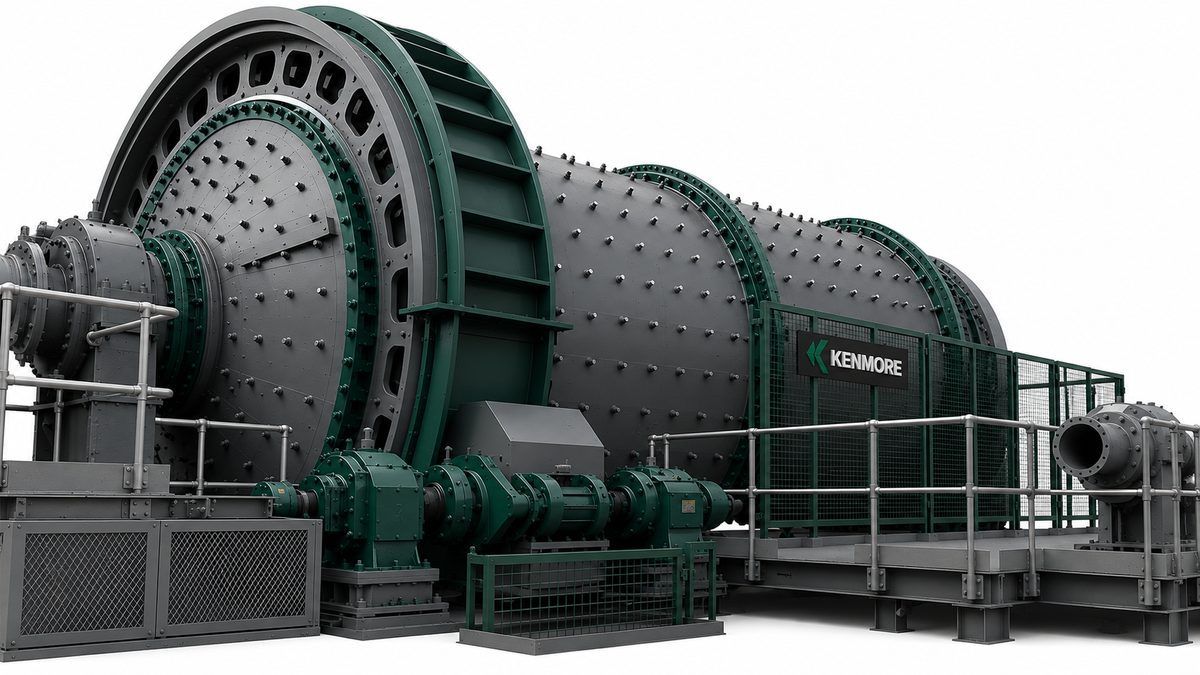

Ball, SAG, AG & Rod Mills
Grinding mills for primary and secondary grinding duty. High-quality cast end caps and a penetration-welded shell give a long service life under continuous load. Overflow and grate-discharge configurations, sized to your circulating load, throughput and target product size.
Shell diameter
from 1,200 mm to 6,000 mm
Shell length
from 2,400 mm to 9,500 mm
Power
from 55 kW to 6,000 kW
Configurations
AG, SAG, ball, rod, scrubber
.....03 / SCREENS

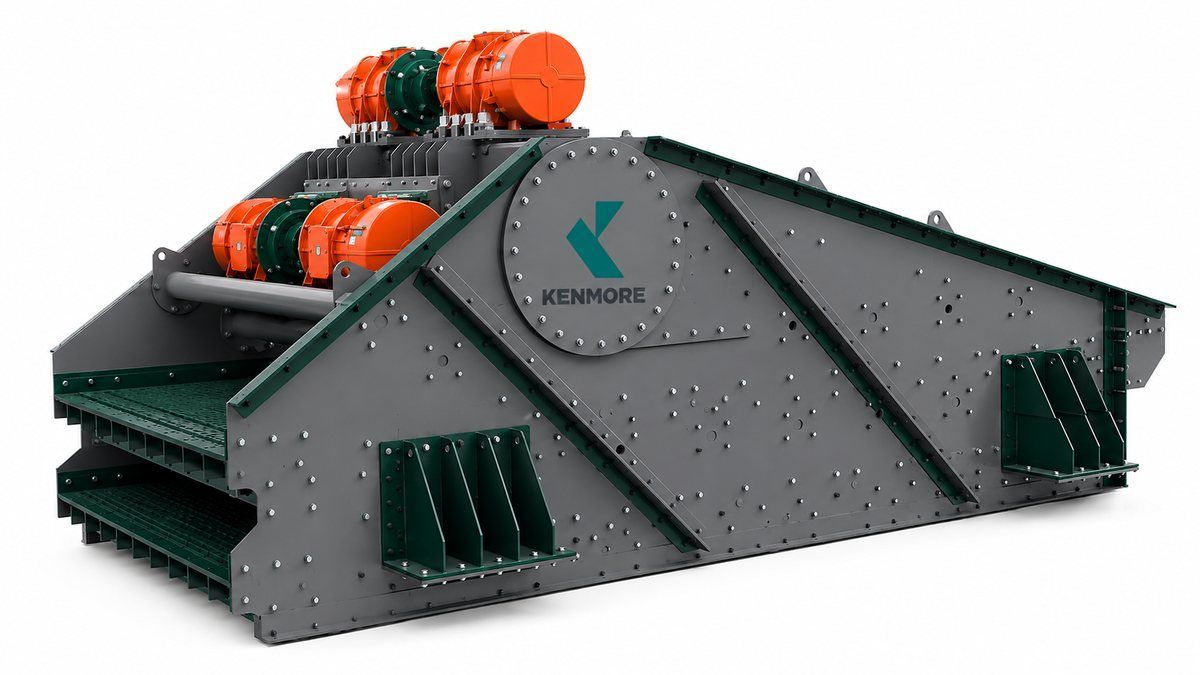

Vibrating, Static & Trommel Screens
Inclined and horizontal vibrating screens, static grizzly screens and trommels for every classification stage. Single, double and triple-deck configurations with wire mesh or polyurethane media, matched to the cut sizes and throughputs your circuit demands.
Deck width
from 1,200 mm to 2,400 mm
Decks
1, 2 or 3 deck
Power
from 7.5 kW to 30 kW
Capacity
from 120 t/h to 1,360 t/h
.....04 / OTHER EQUIPMENT
Materials handling and ancillary equipment.
The supporting equipment that ties a circuit together — supplied as part of a Kenmore project or as standalone units. Apron feeders, vibrating grizzly feeders, belt conveyors and transfer chutes, surge bins and hoppers, dust suppression, and control and lubrication systems. Speak to us about the equipment your circuit needs.
.....ENGINEERING-LED
Not sure which equipment
fits your circuit?
Tell us your ore, throughput and feed size, and our engineers will size the right solution.
