Production that moves with the job.

Hybrid tracked crushing and screening plants. Engineered for mines, quarries and contractors.

light gold small line divider

.....FLAGSHIP / TRACKED JAW

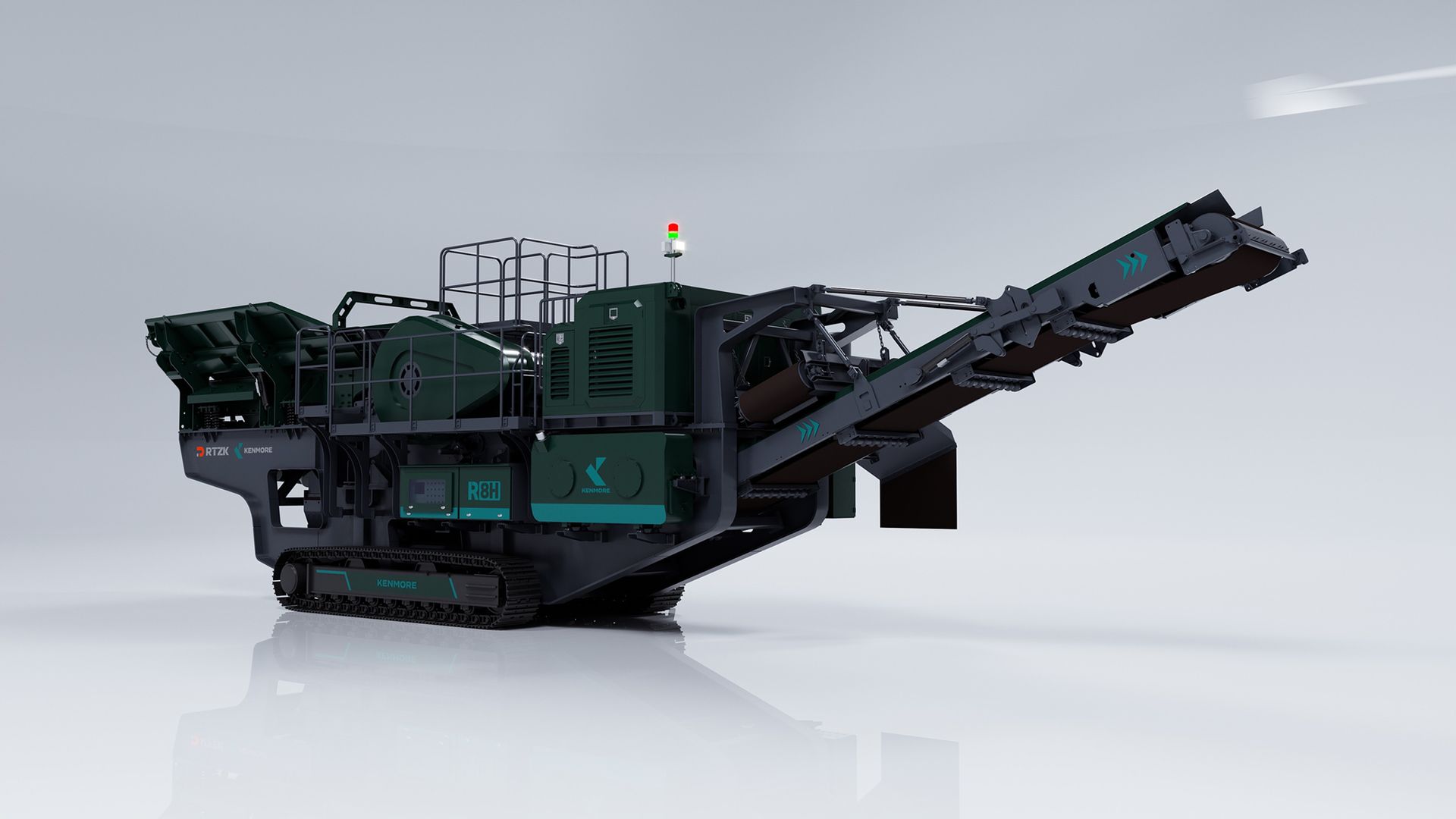

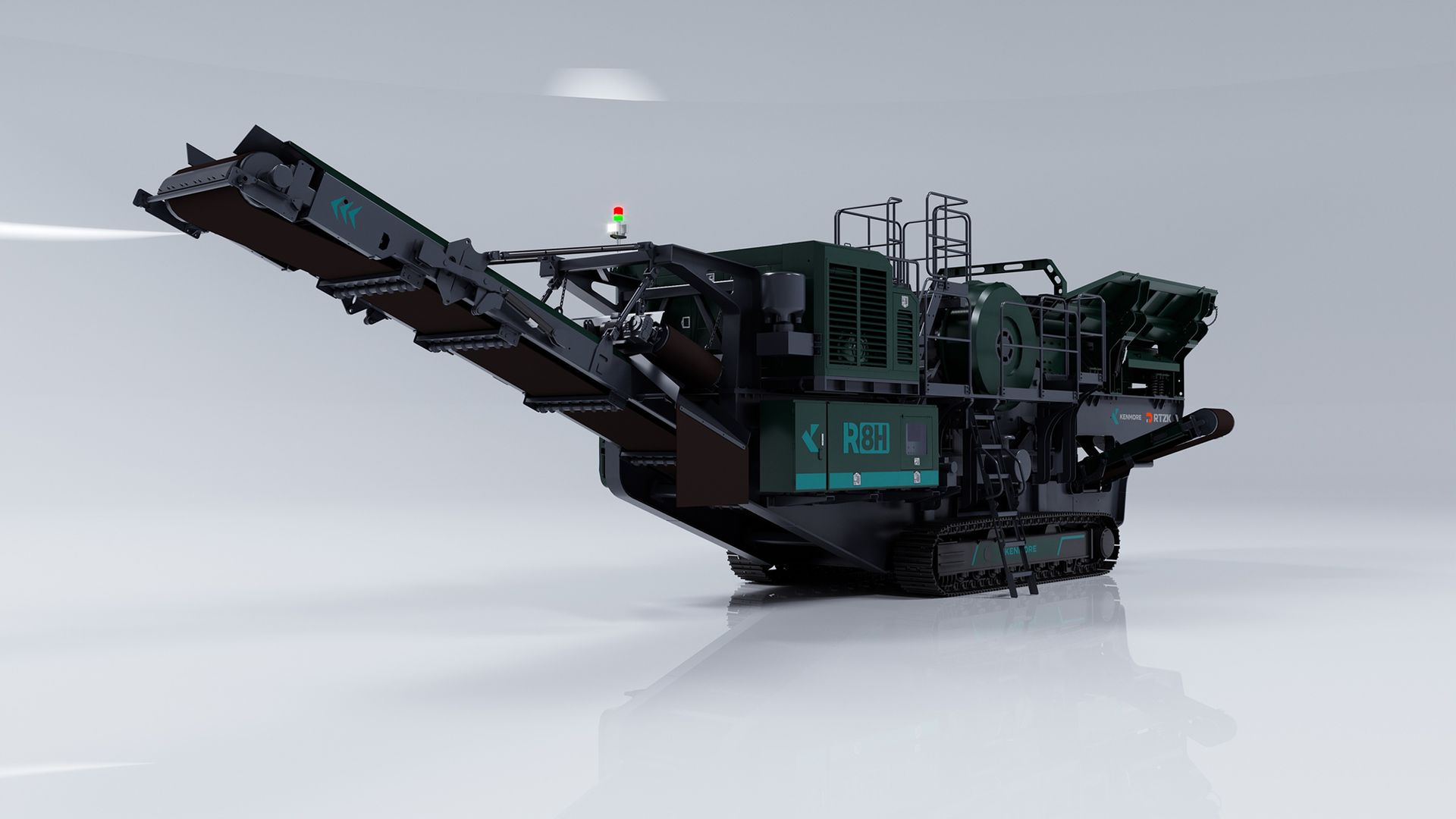

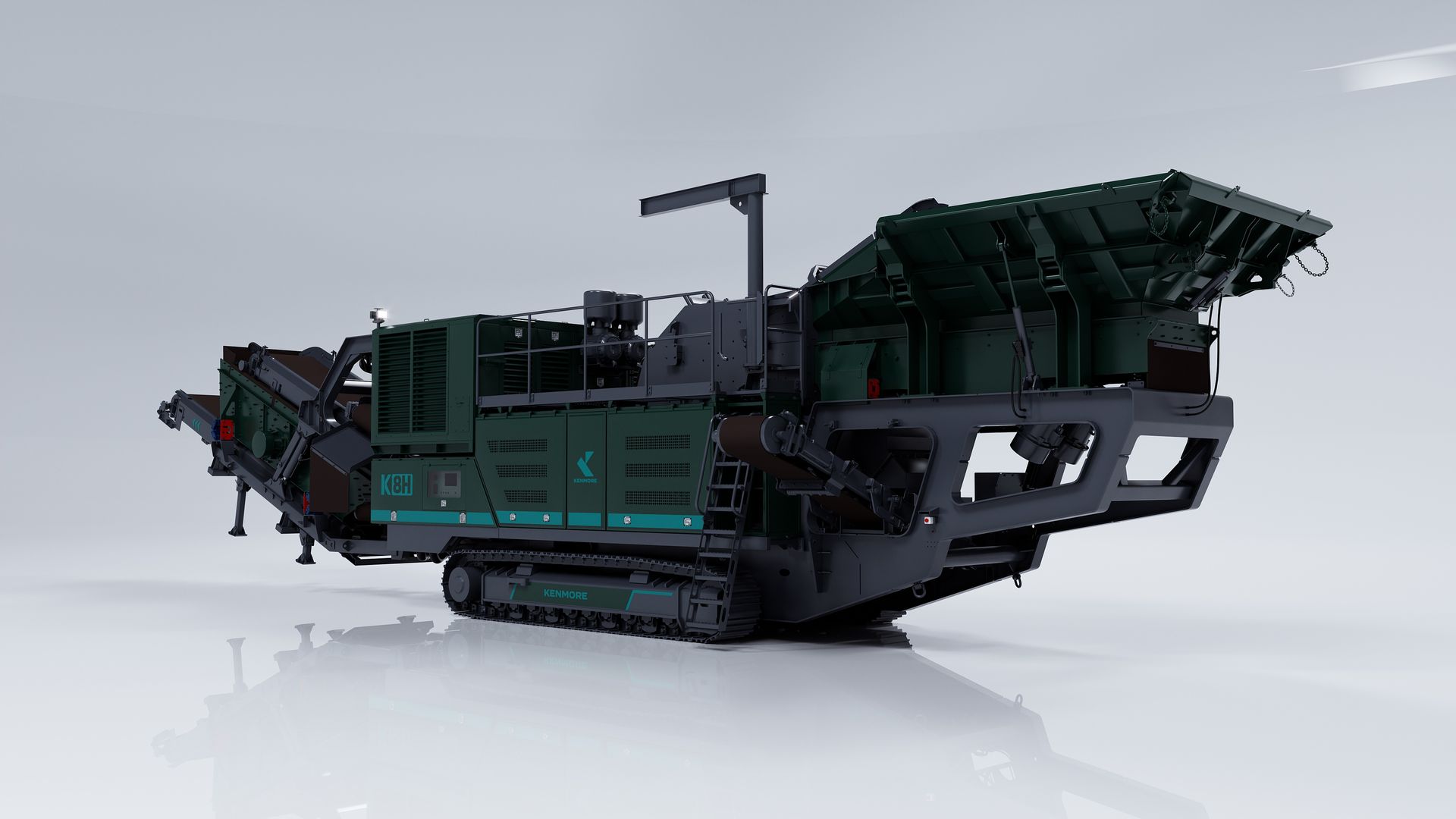

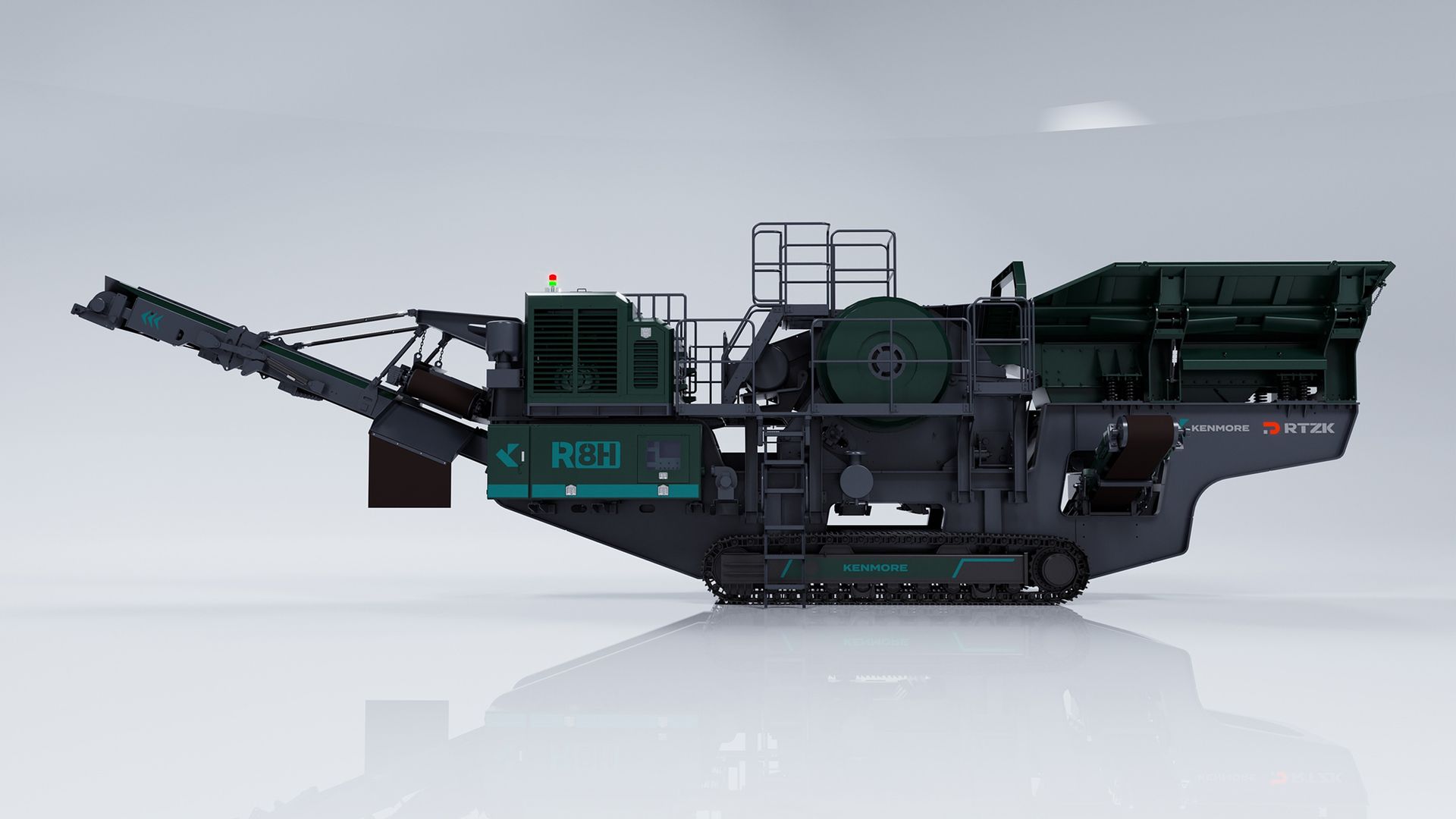

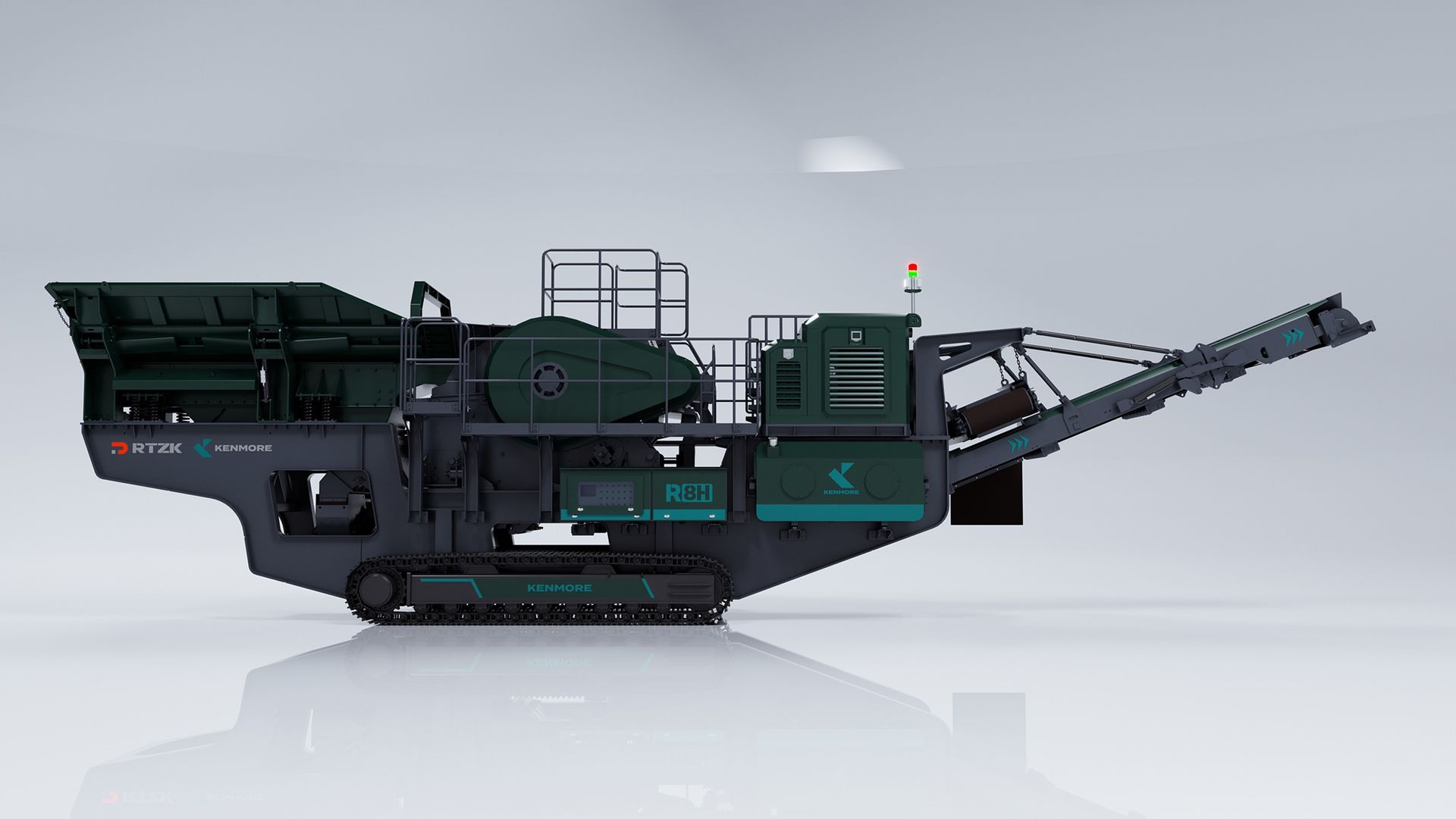

R8H Mobile Jaw.

A tracked plant built around a Kenmore jaw crusher, and the largest feed opening in the range at 700 mm. Hydraulically folding conveyor, 9 m³ hopper and a 3.8 m transport height, so it travels in a single load.

Maximum feed sizE

700 mm

Discharge setting (CSS)

70–200 mm

Capacity

170–220 t/h

Hopper capacity

9 m³

Feed height

4 100 mm

Crusher motor

132 kW

Main conveyor

1 000 mm belt, 15 kW

Generator set

250 kW

Drive concept

Diesel-electric hybrid

Stockpile height

3 600 mm

OVERBELT Magnet

Self-cleaning, 3 kW

Operating weight

57 t

Transport dimensions

16.7 × 3.3 × 3.8 m

Undercarriage

RTZK tracked chassis

light gold small line divider

..... TRACKED CONE

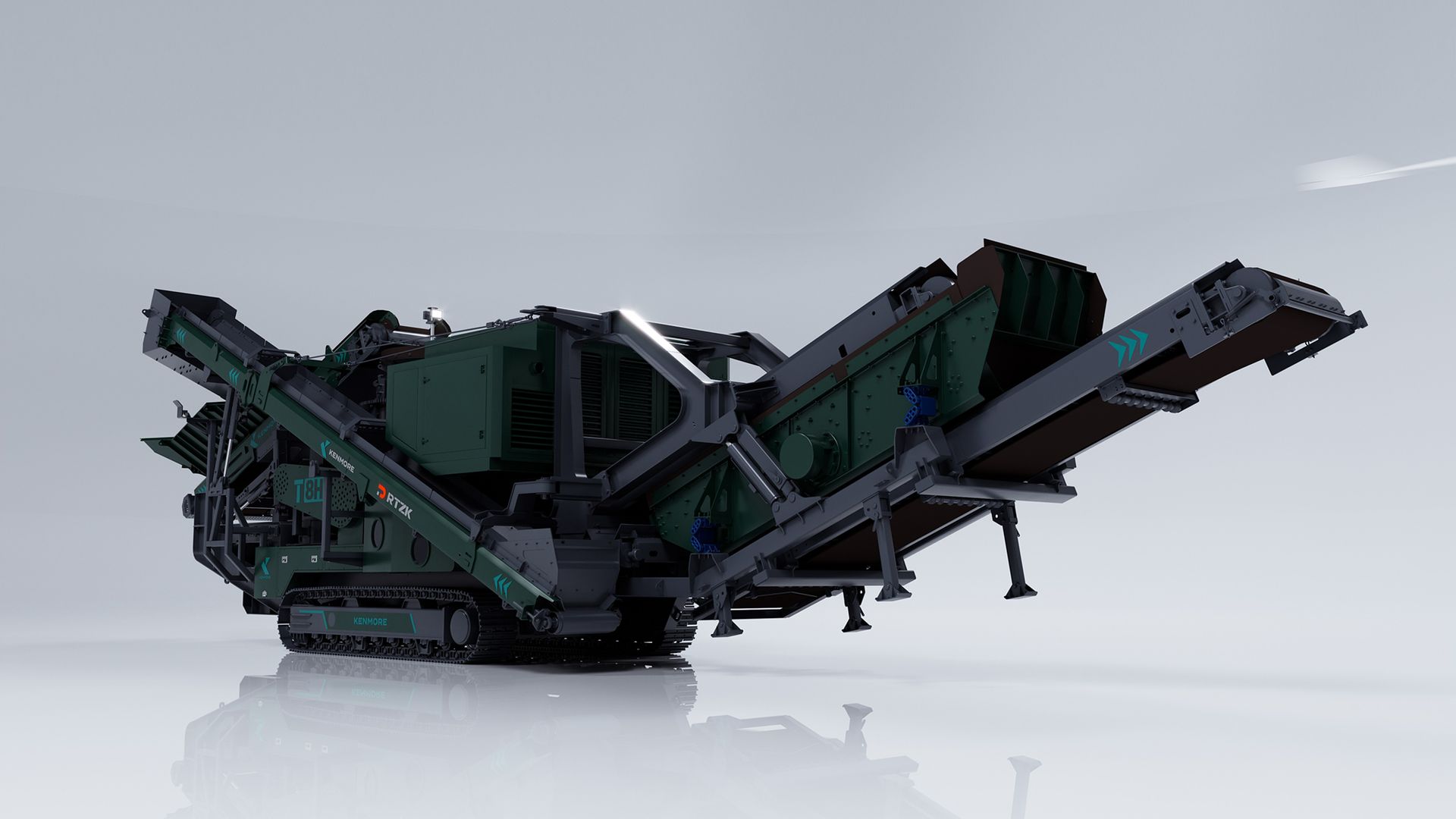

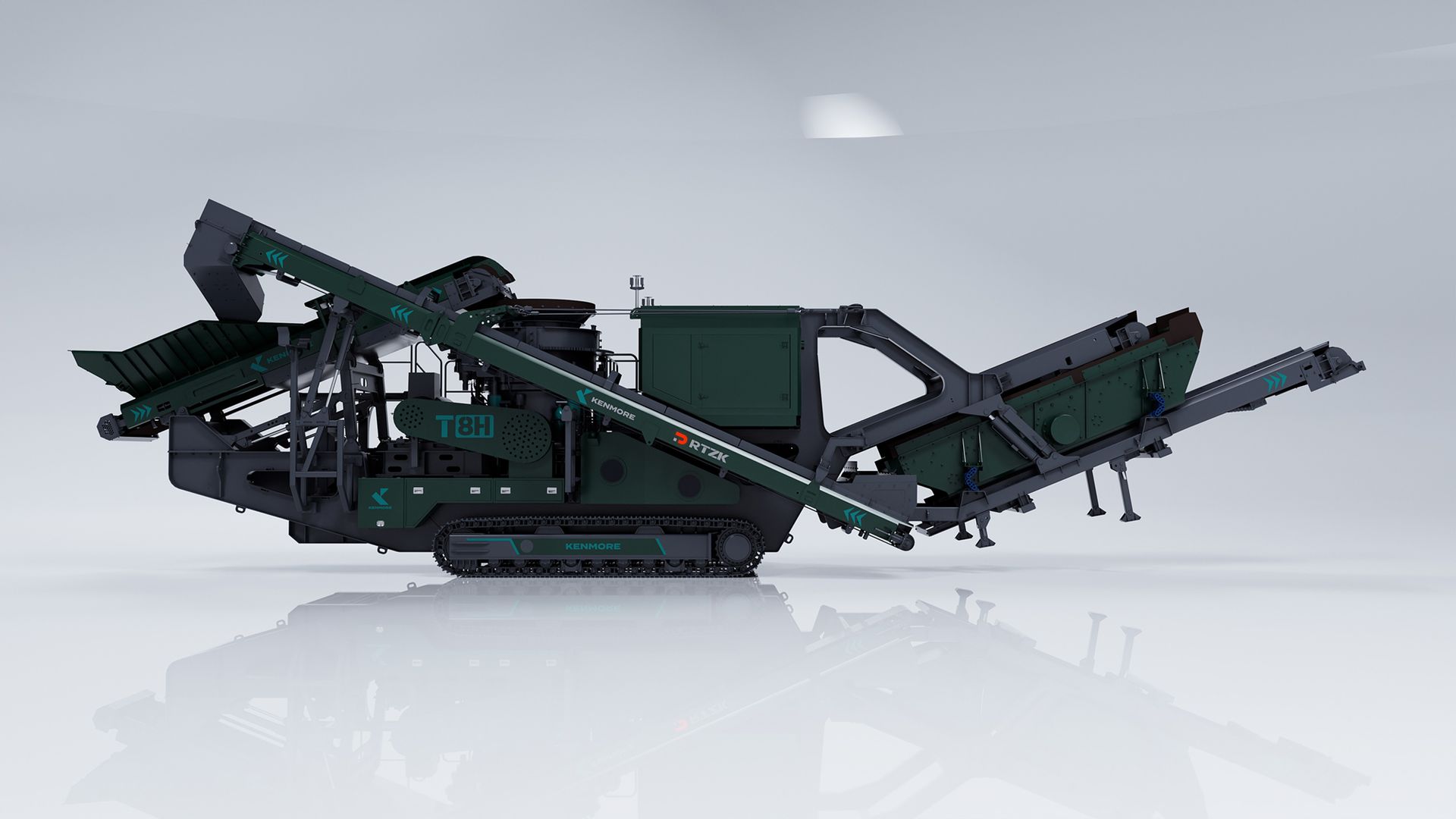

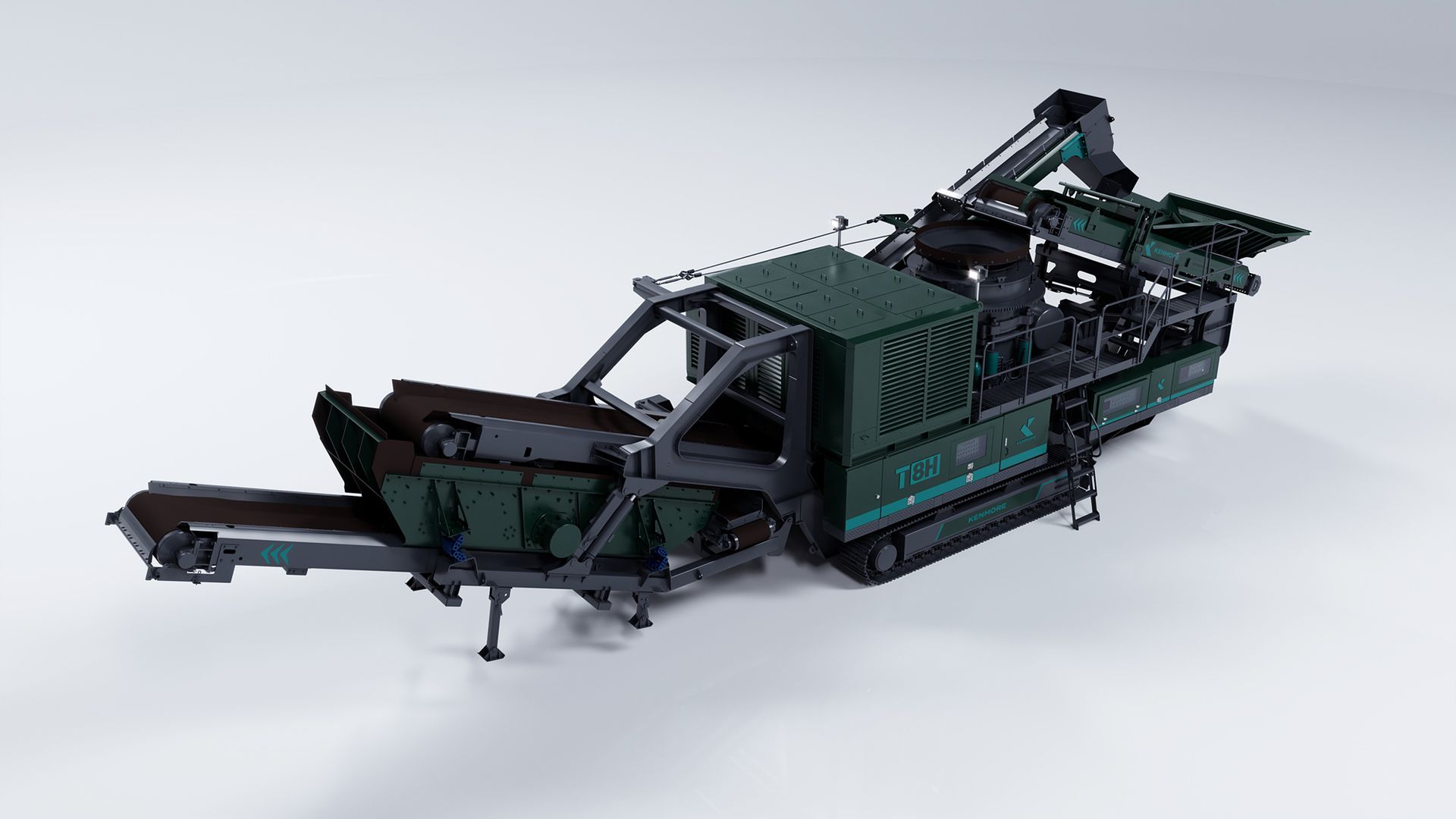

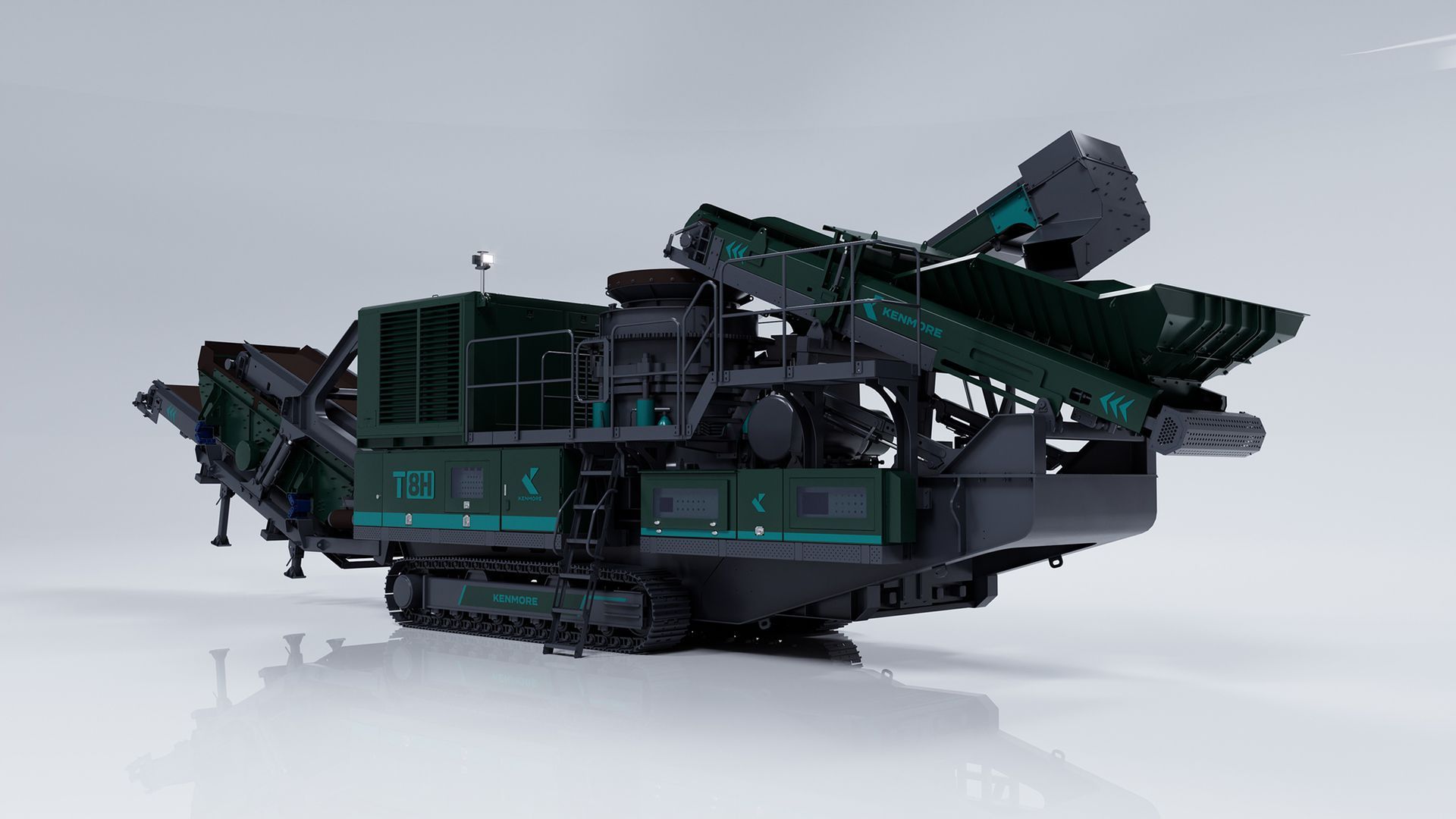

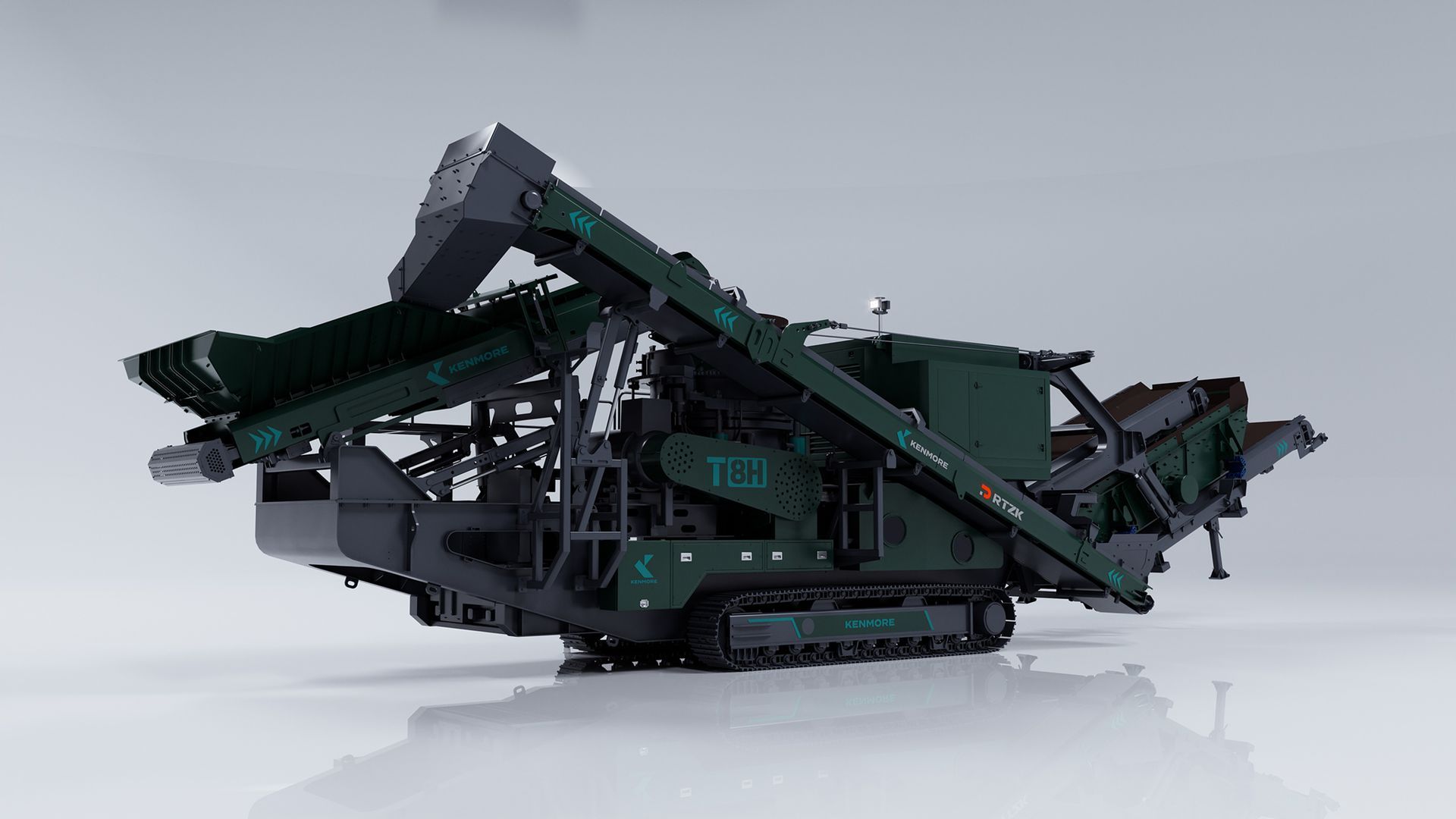

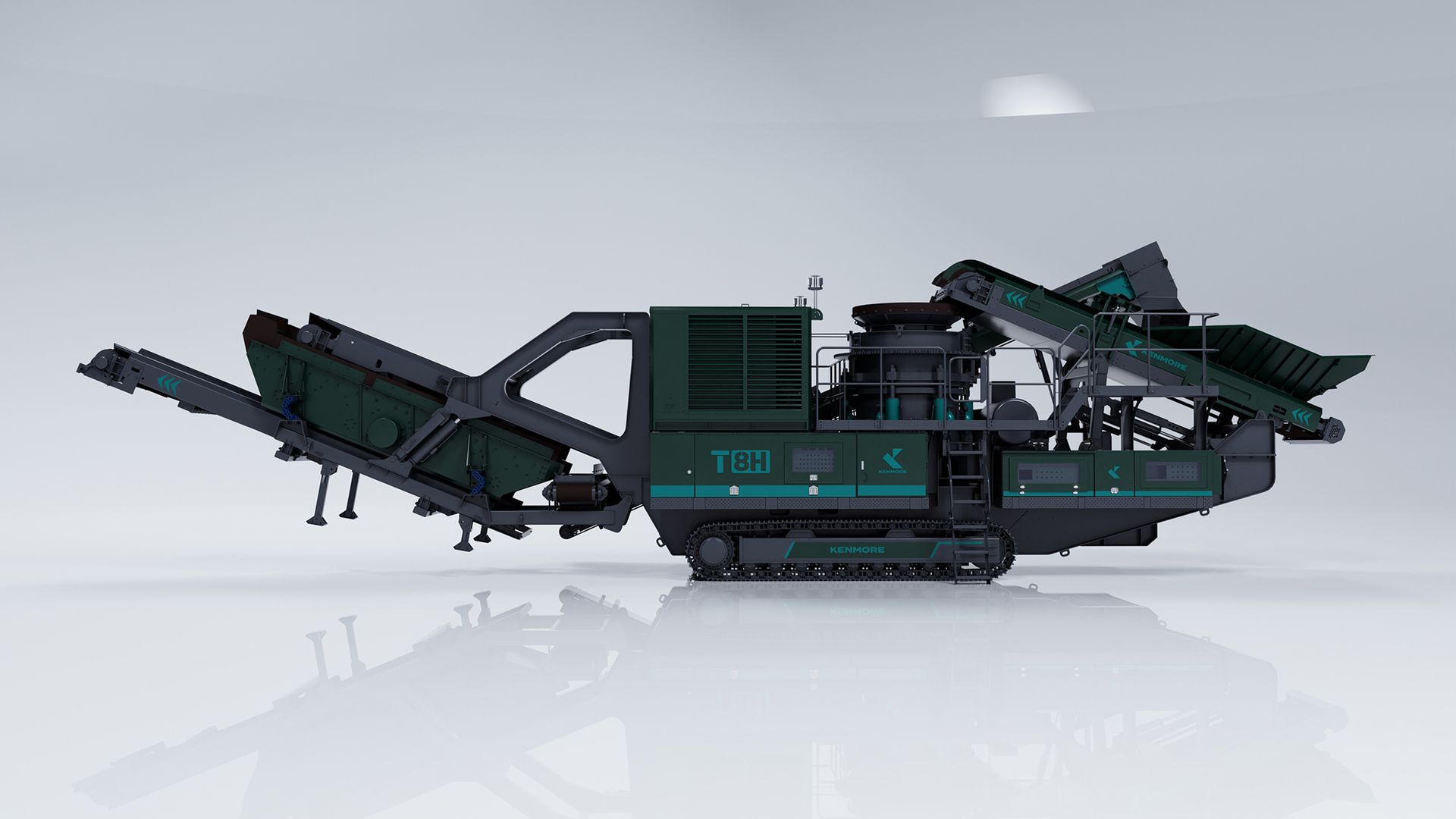

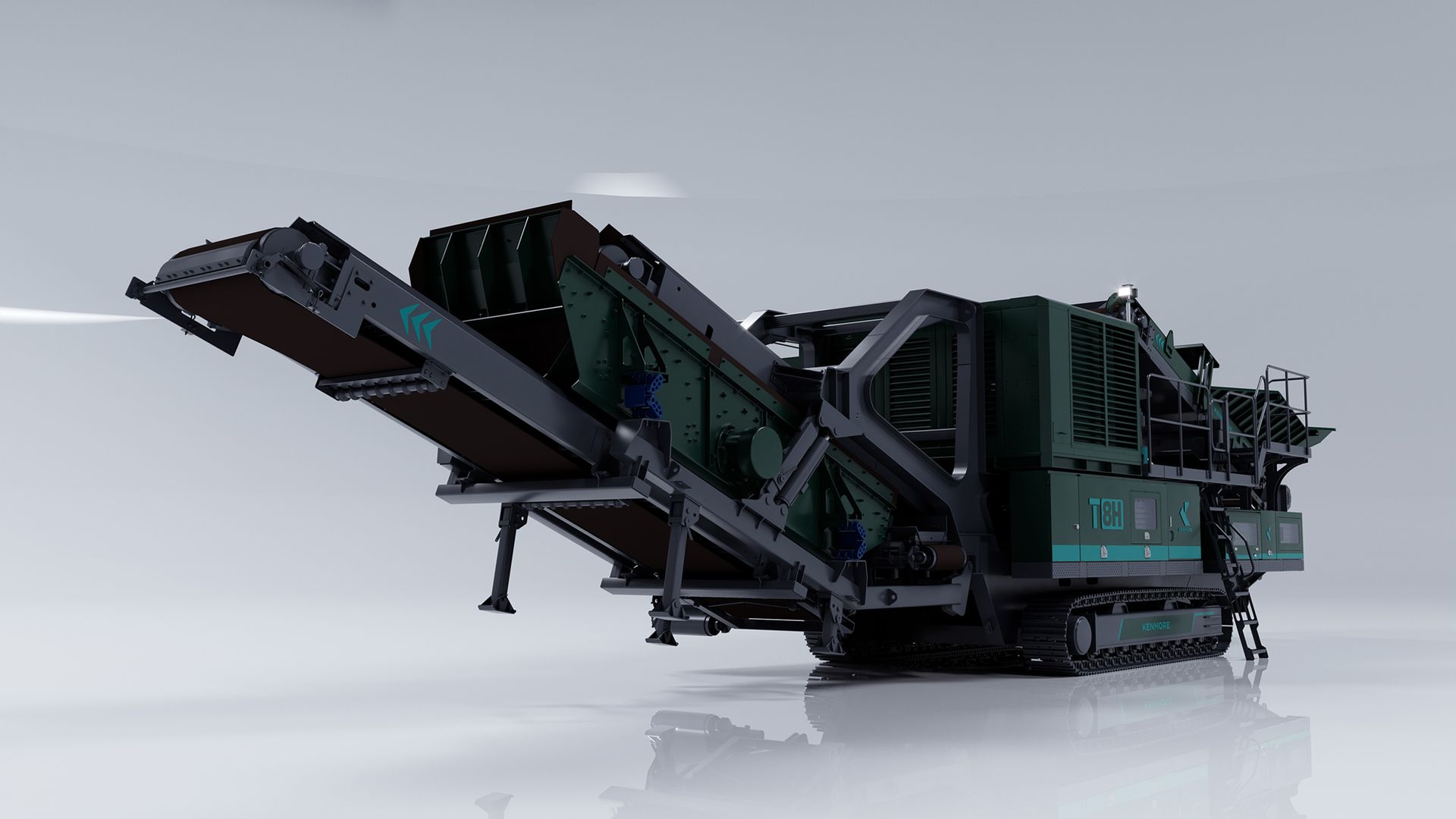

T8H Mobile Cone.

Secondary and tertiary crushing, built around a Kenmore cone crusher. A single-deck screen and return conveyor complete the closed circuit, returning oversize to the crusher for further reduction without a second crushing unit.

Maximum feed sizE

210 mm

Capacity

120–200 t/h

Feed capacity

320 t/h

Hopper capacity

3 m³

Crusher motor

250 kW

Screening area

4 200 × 1 600 mm

Screen decks

1

Generator set

440 kW

Drive concept

Diesel-electric hybrid

Main conveyor

1 000 mm belt, 15 kW

Operating weight

61 t

Transport dimensions

19.0 × 4.2 × 3.8 m

Undercarriage

RTZK tracked chassis

light gold small line divider

..... TRACKED SCREEN

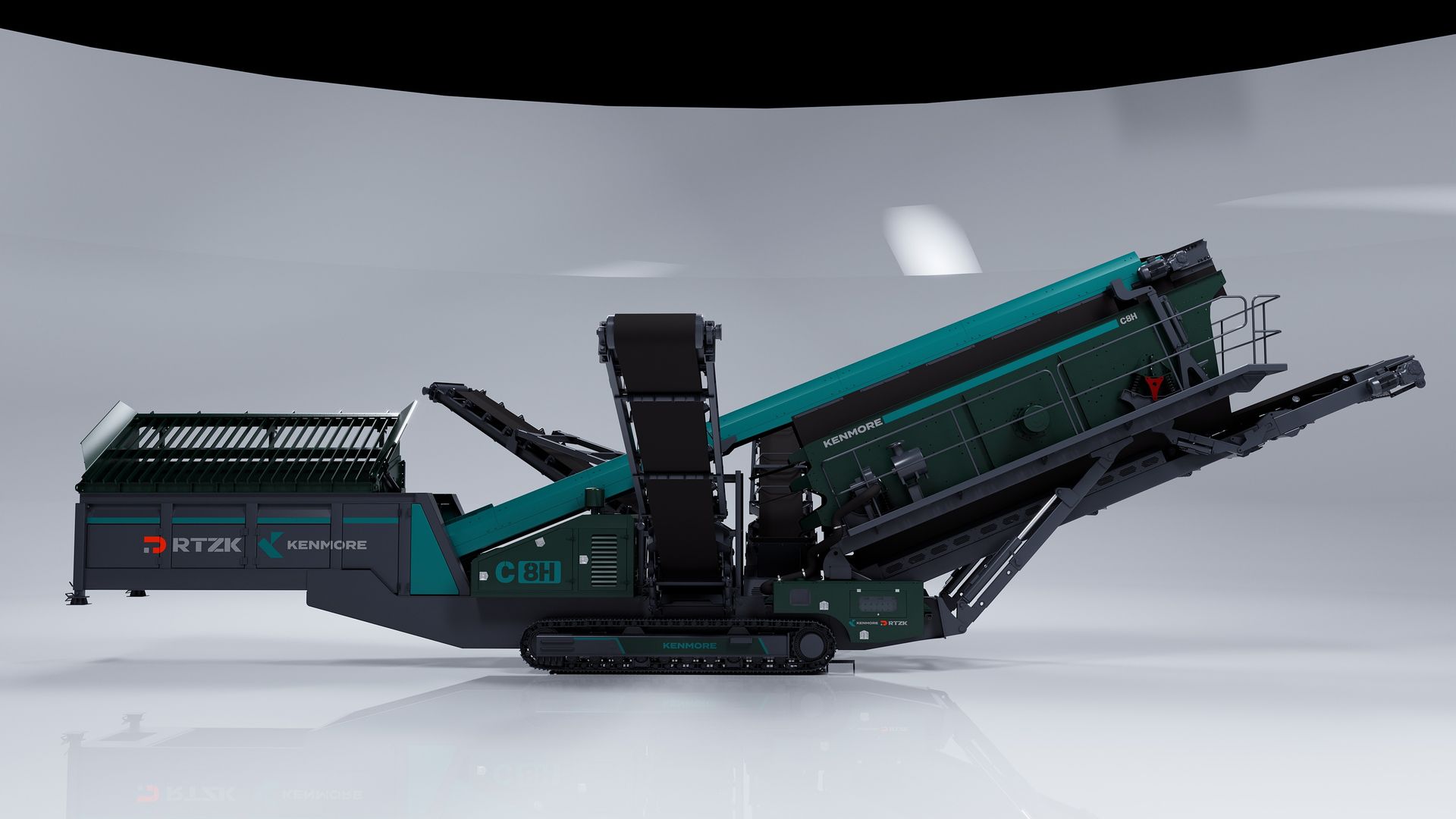

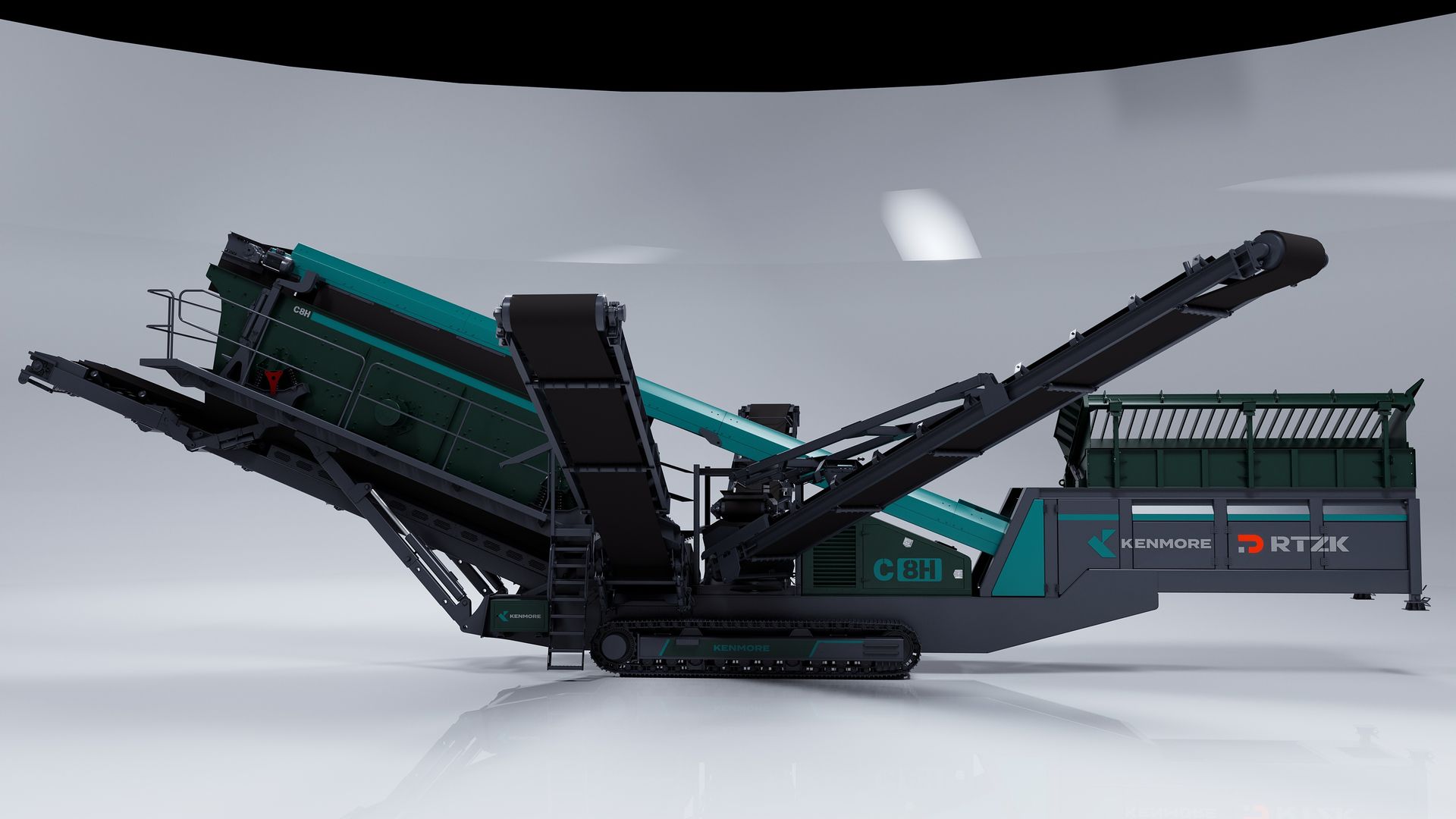

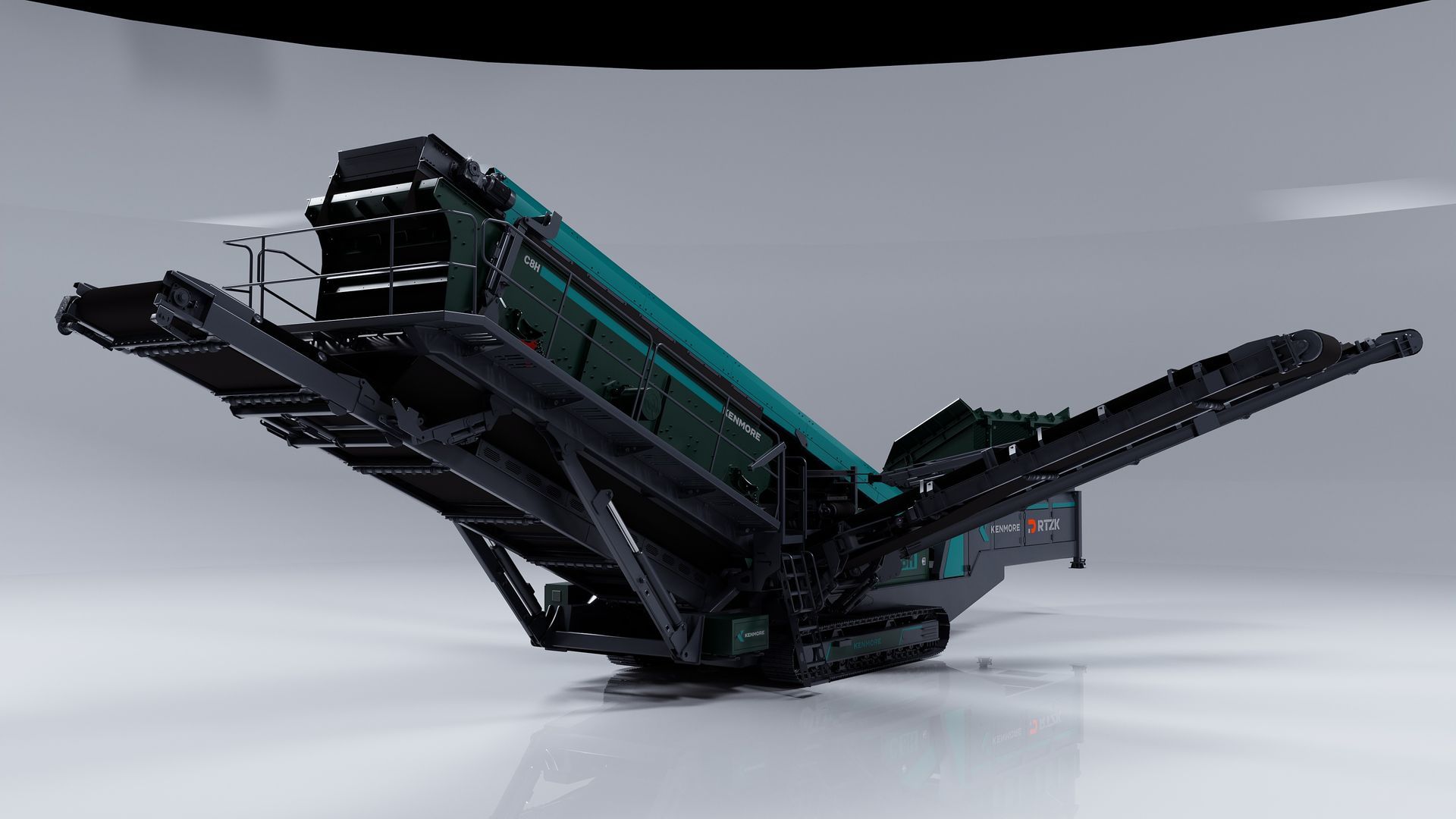

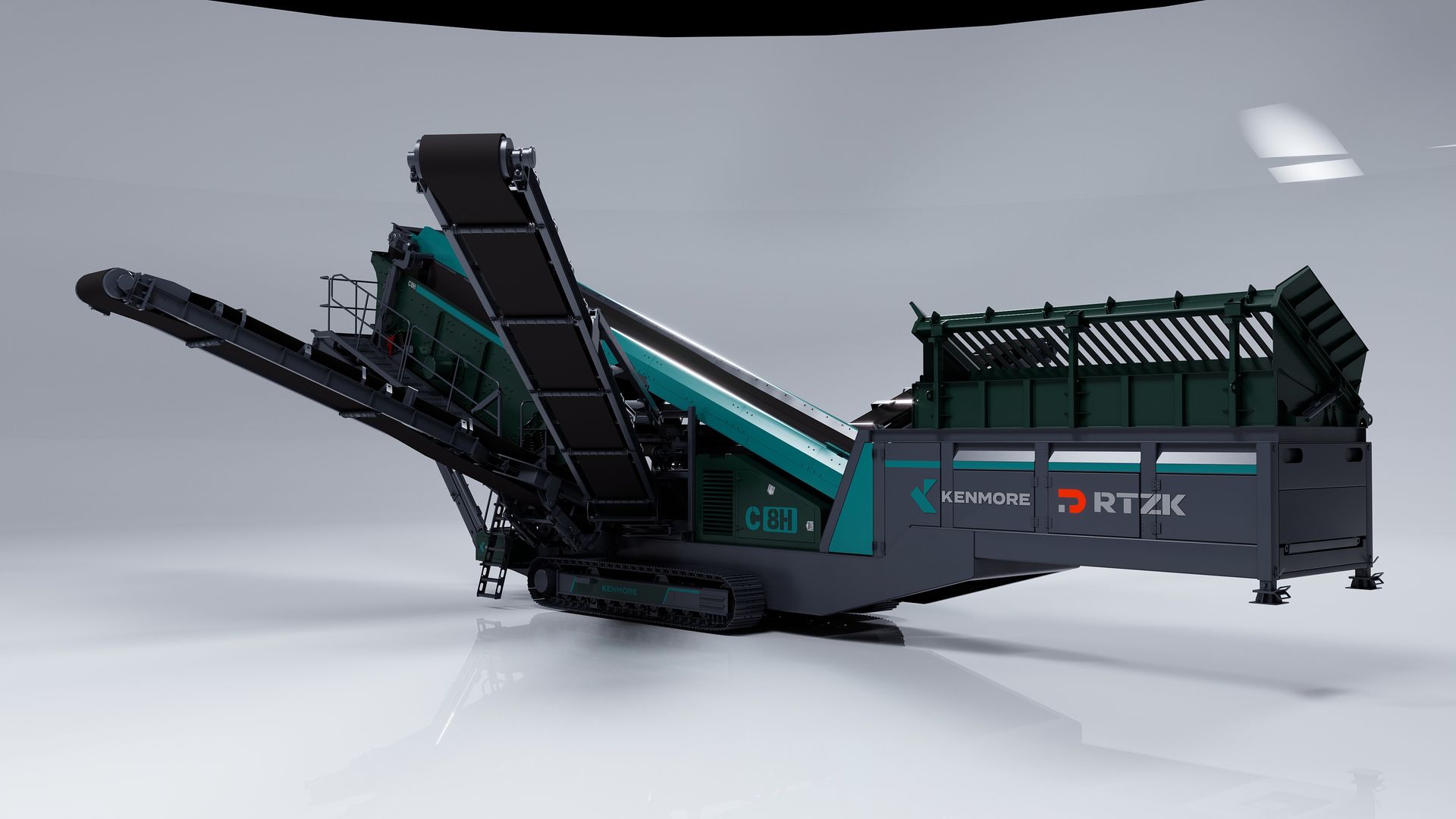

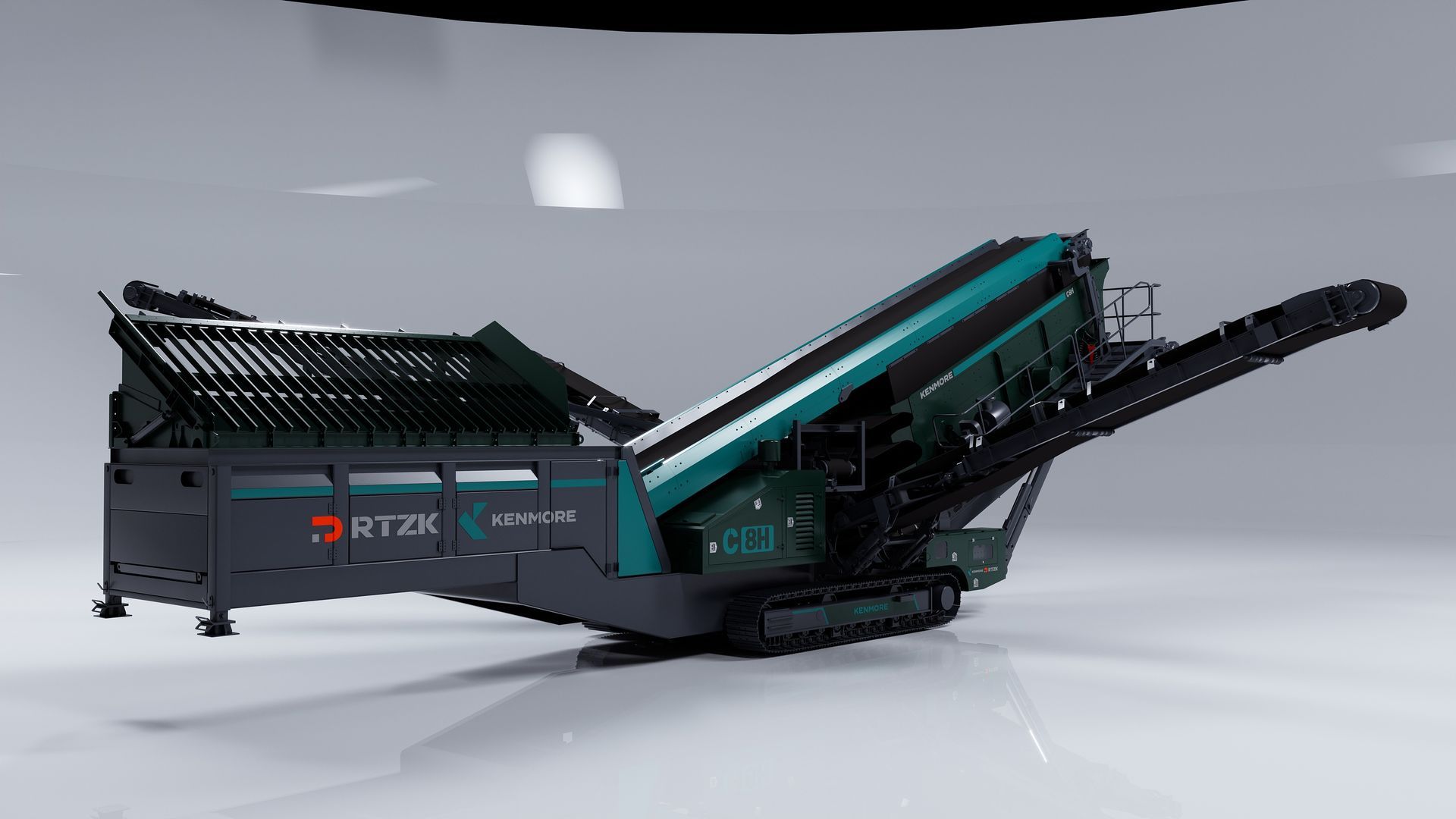

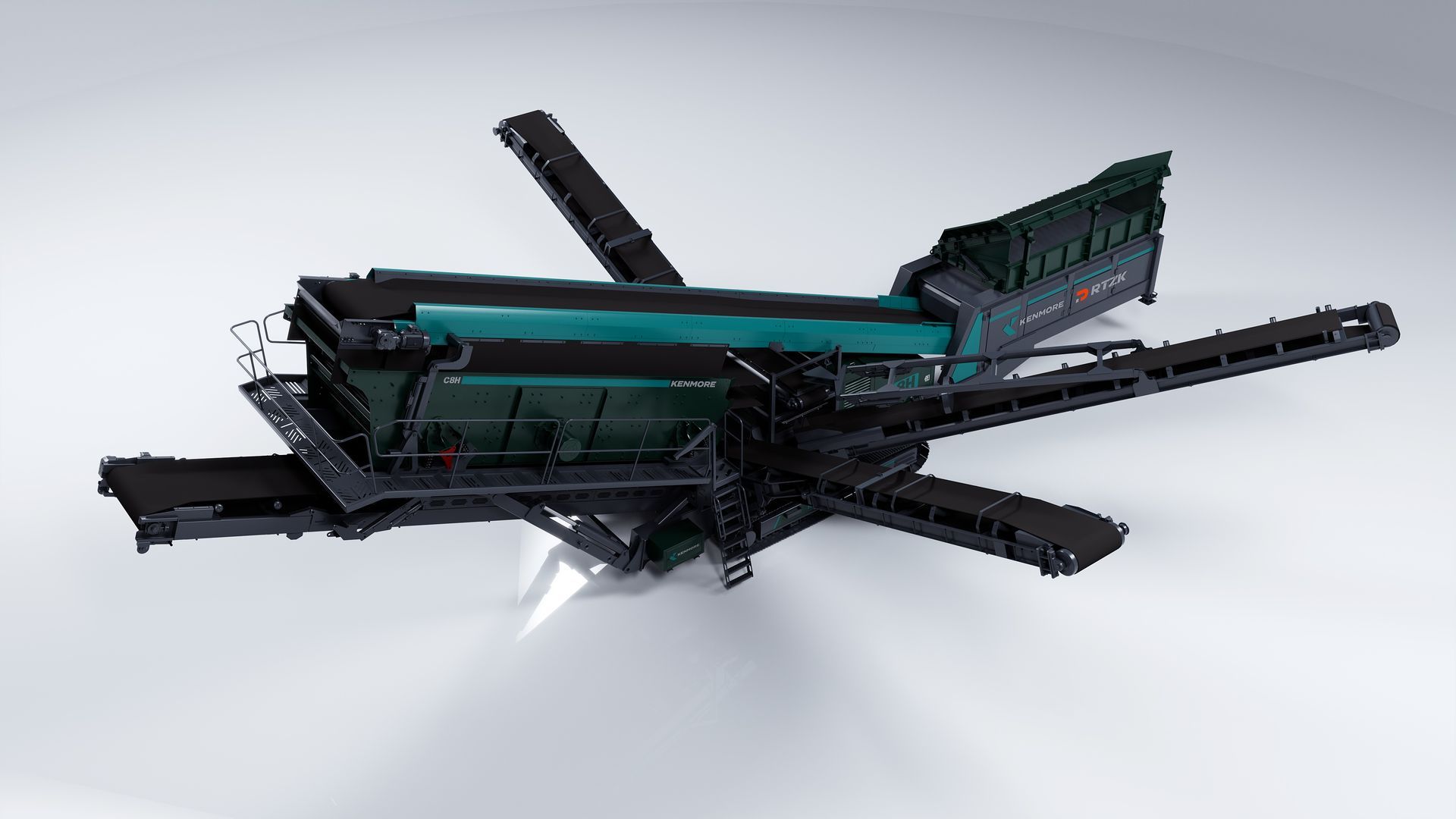

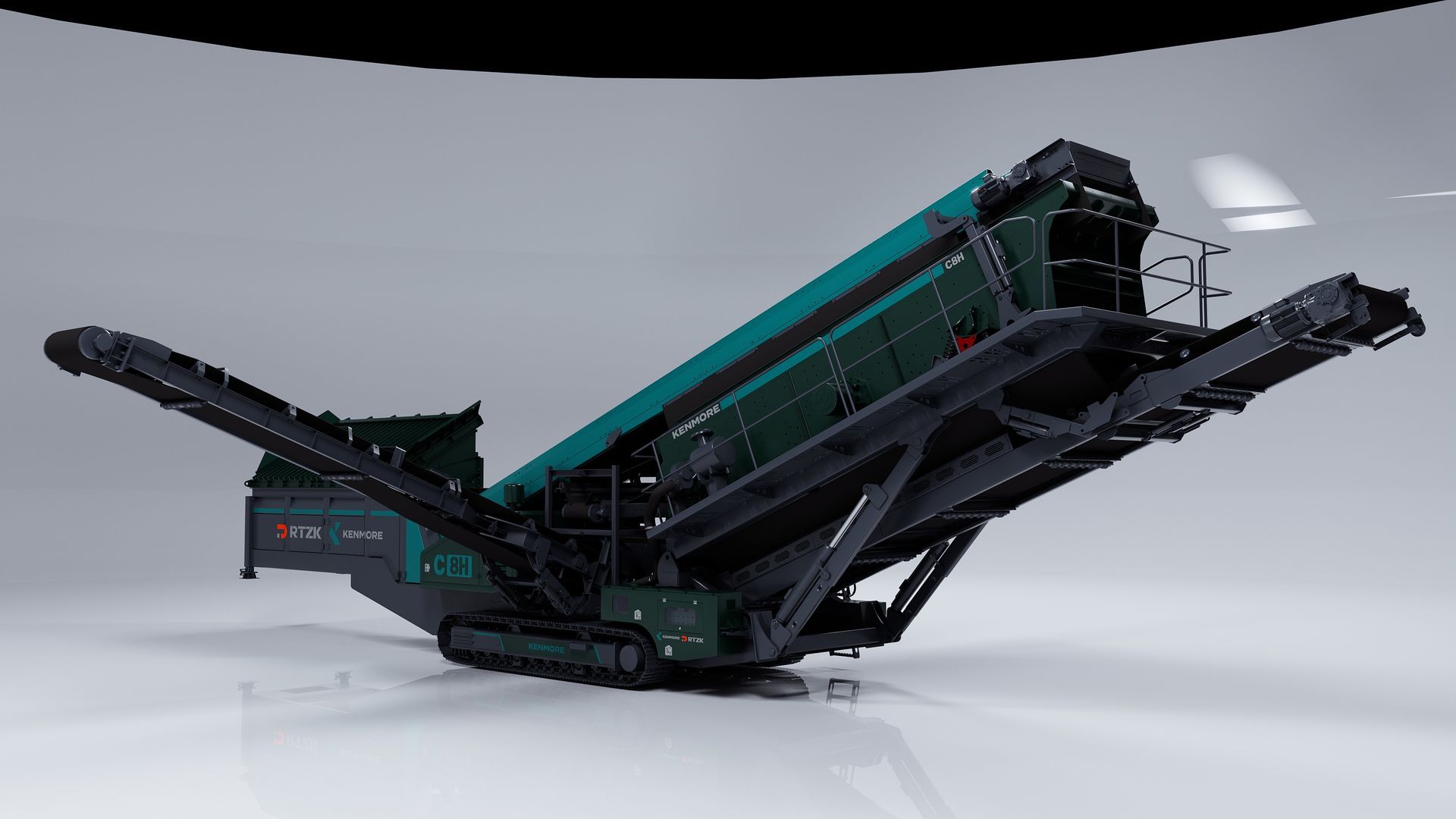

C8H Mobile Screen.

Three decks and four product conveyors, so one machine produces coarse, medium, fine and fine-powder products without a second screening unit on site. The 6 000 × 1 970 mm screening area handles up to 300 t/h at a 150 mm maximum feed size.

Maximum feed sizE

150 mm

Capacity

300 t/h

Screening area

6 000 × 1 970 mm

Screen decks

3

Coarse material conveyor

650 mm belt, 5.5 kW

Medium material conveyor

4 500 × 1 500 mm

Fine material conveyor

800 mm belt, 7.5 kW

Fine powder conveyor

1 200 mm belt, 7.5 kW

Generator set

100 kW

Drive concept

Diesel-electric hybrid

Operating weight

43 t

Transport dimensions

20.0 × 3.85 × 3.7 m

Undercarriage

RTZK tracked chassis

light gold small line divider

..... RACKED SCALPER

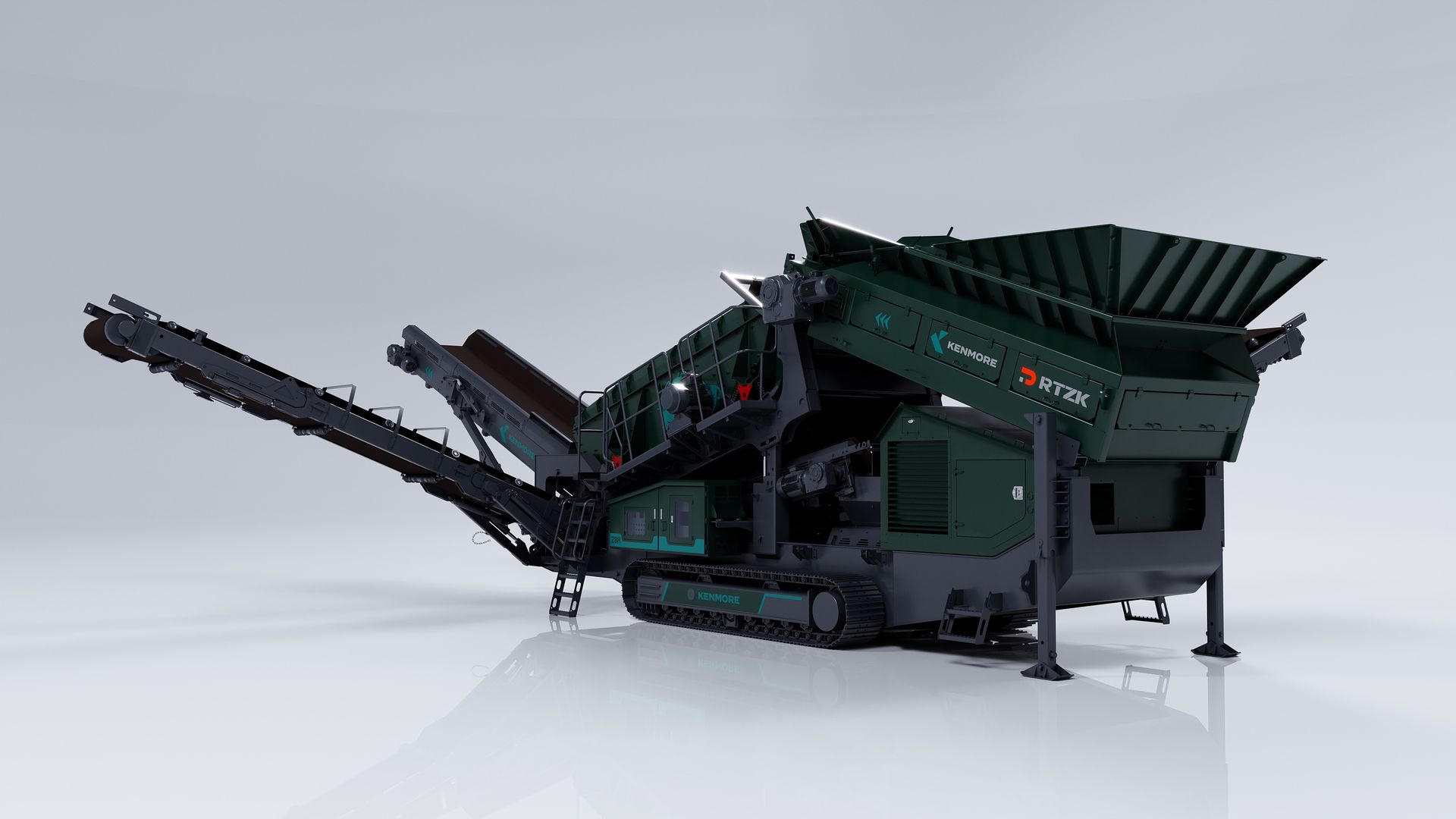

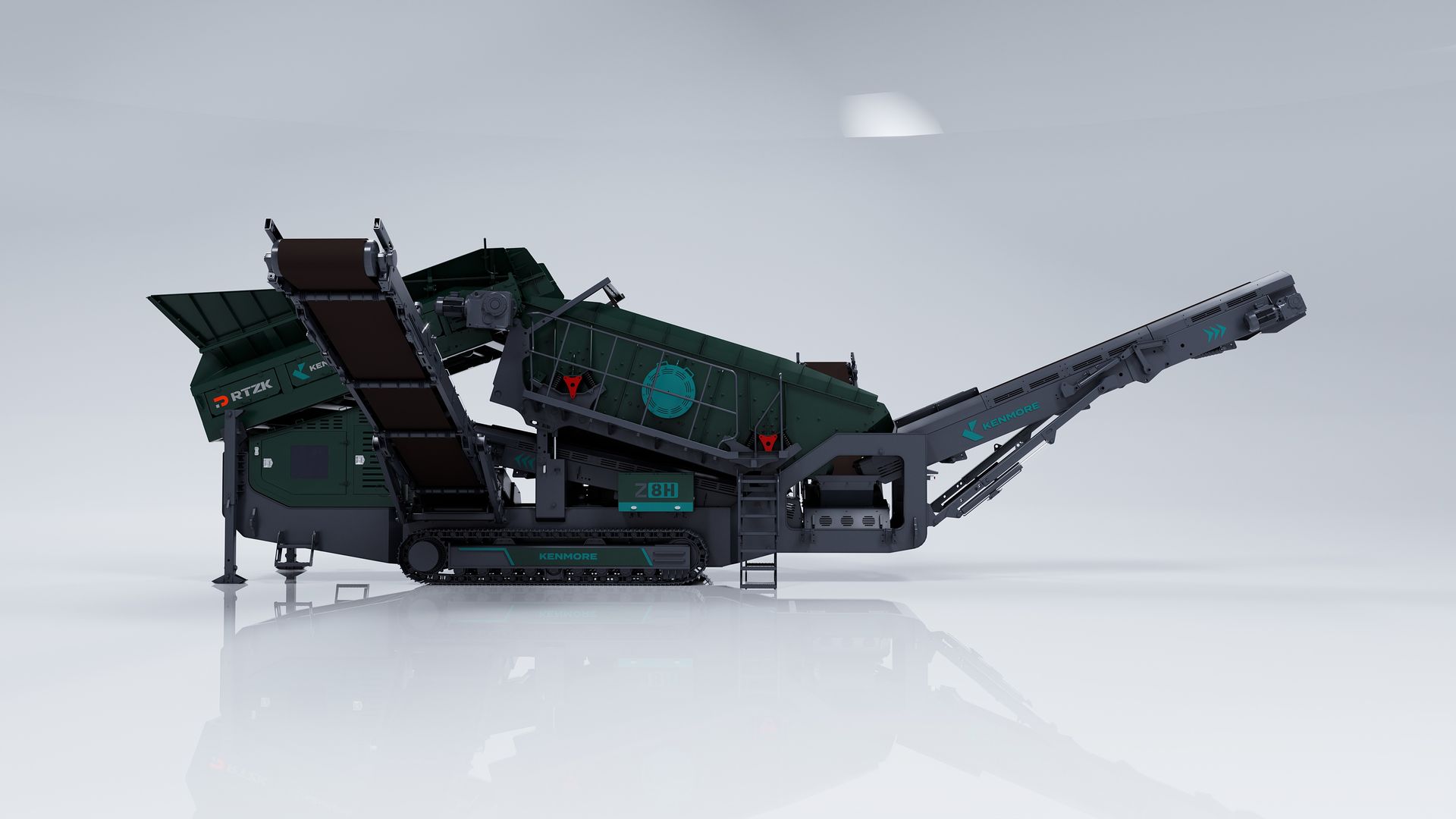

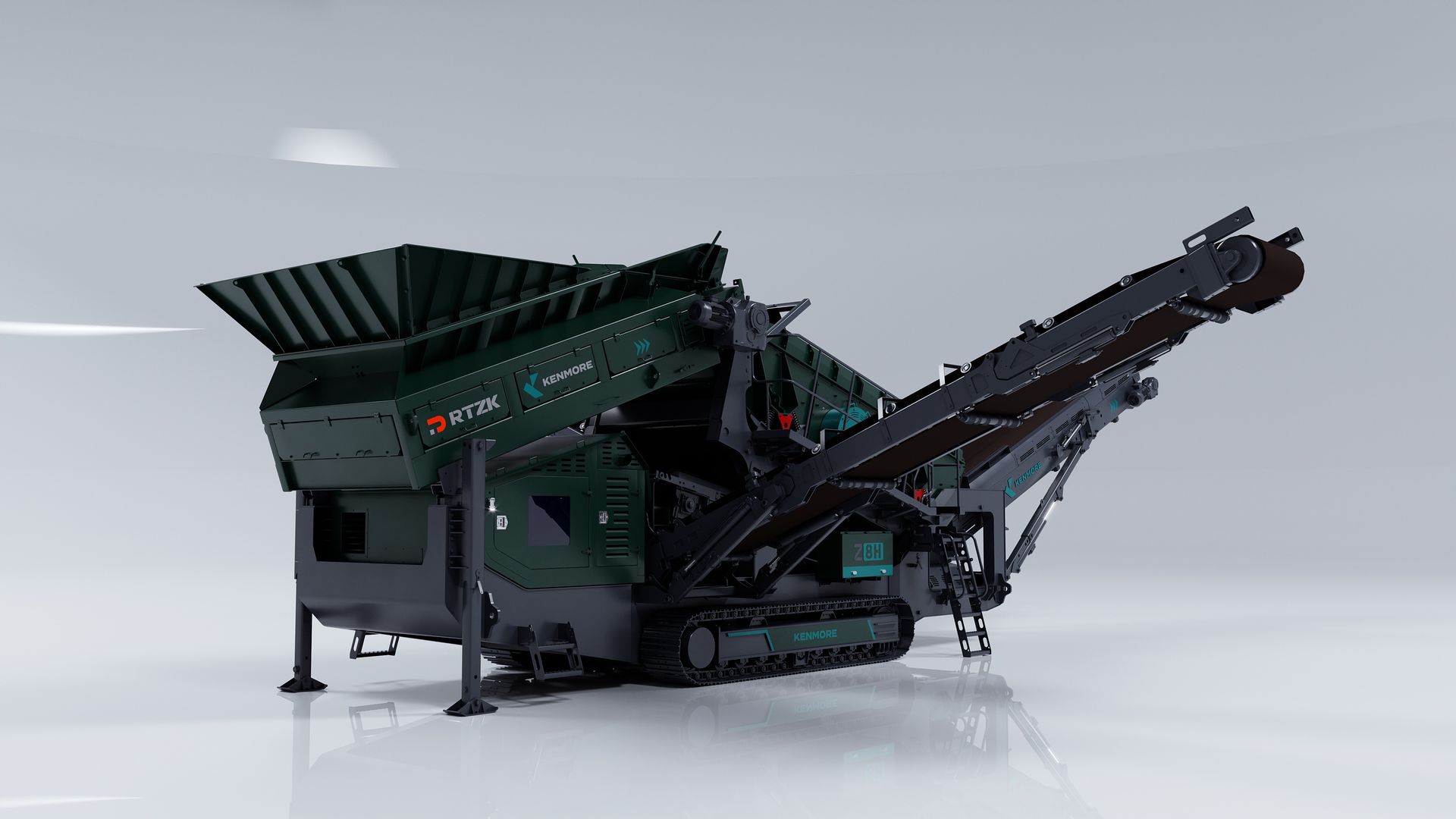

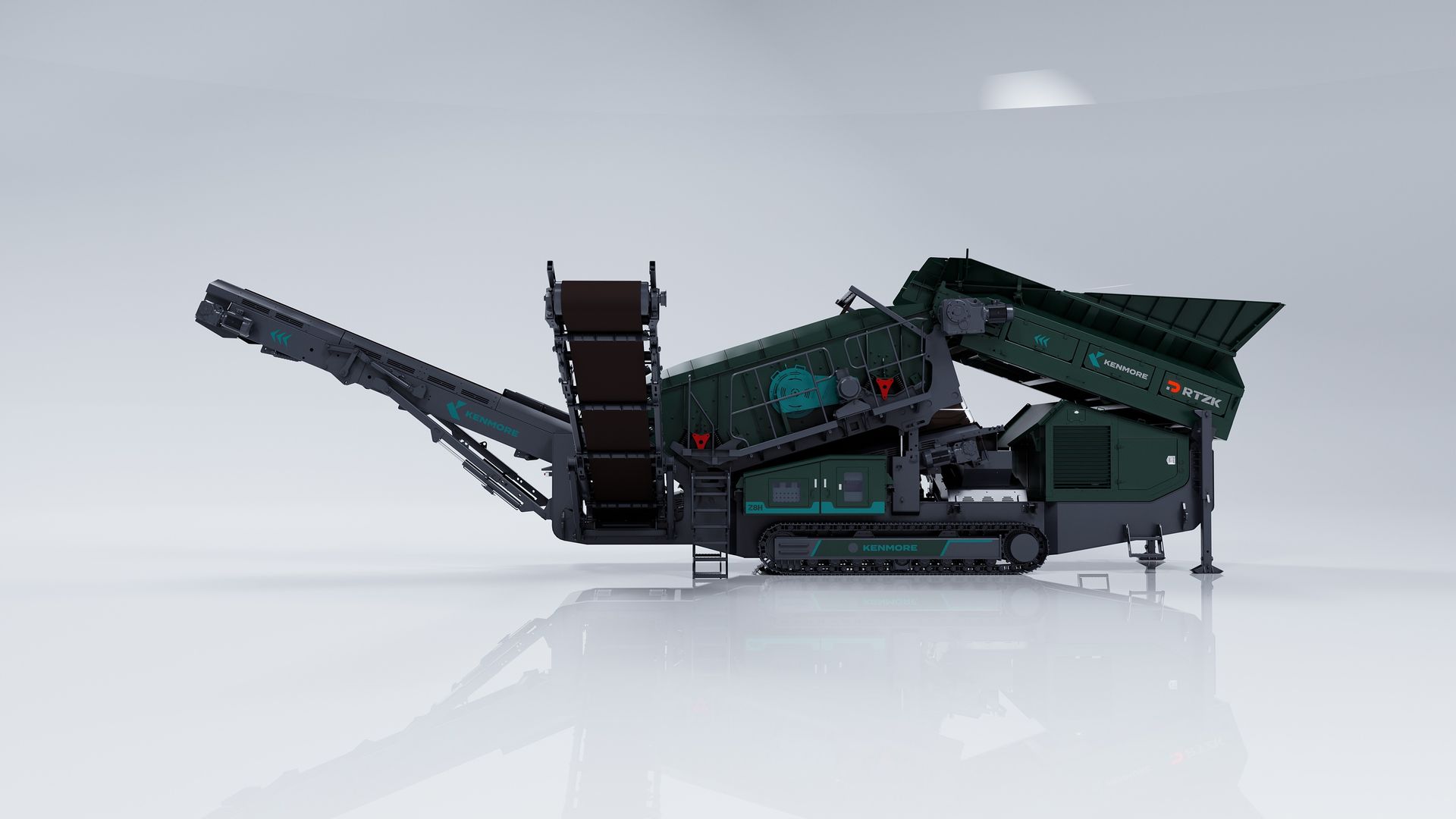

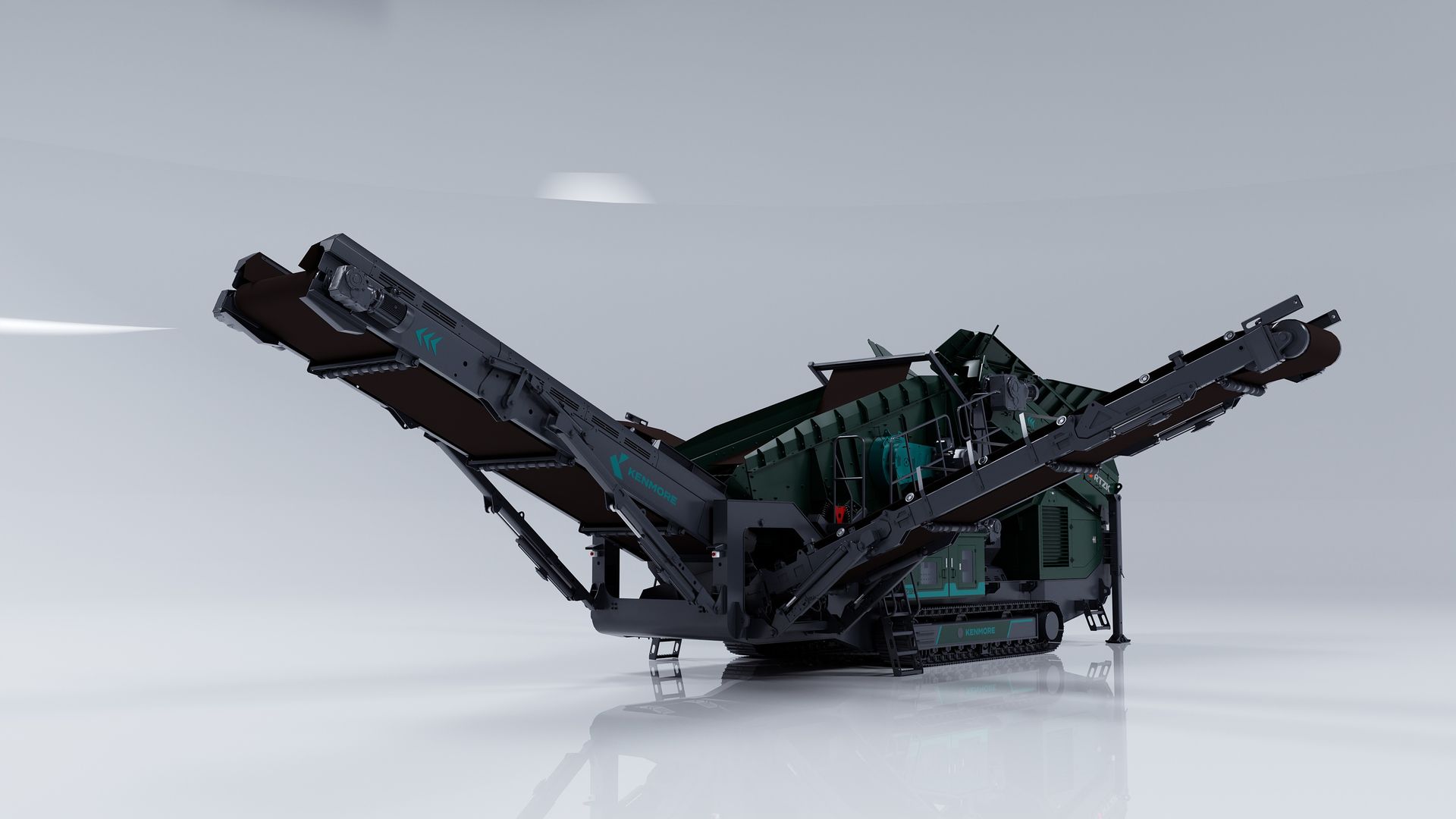

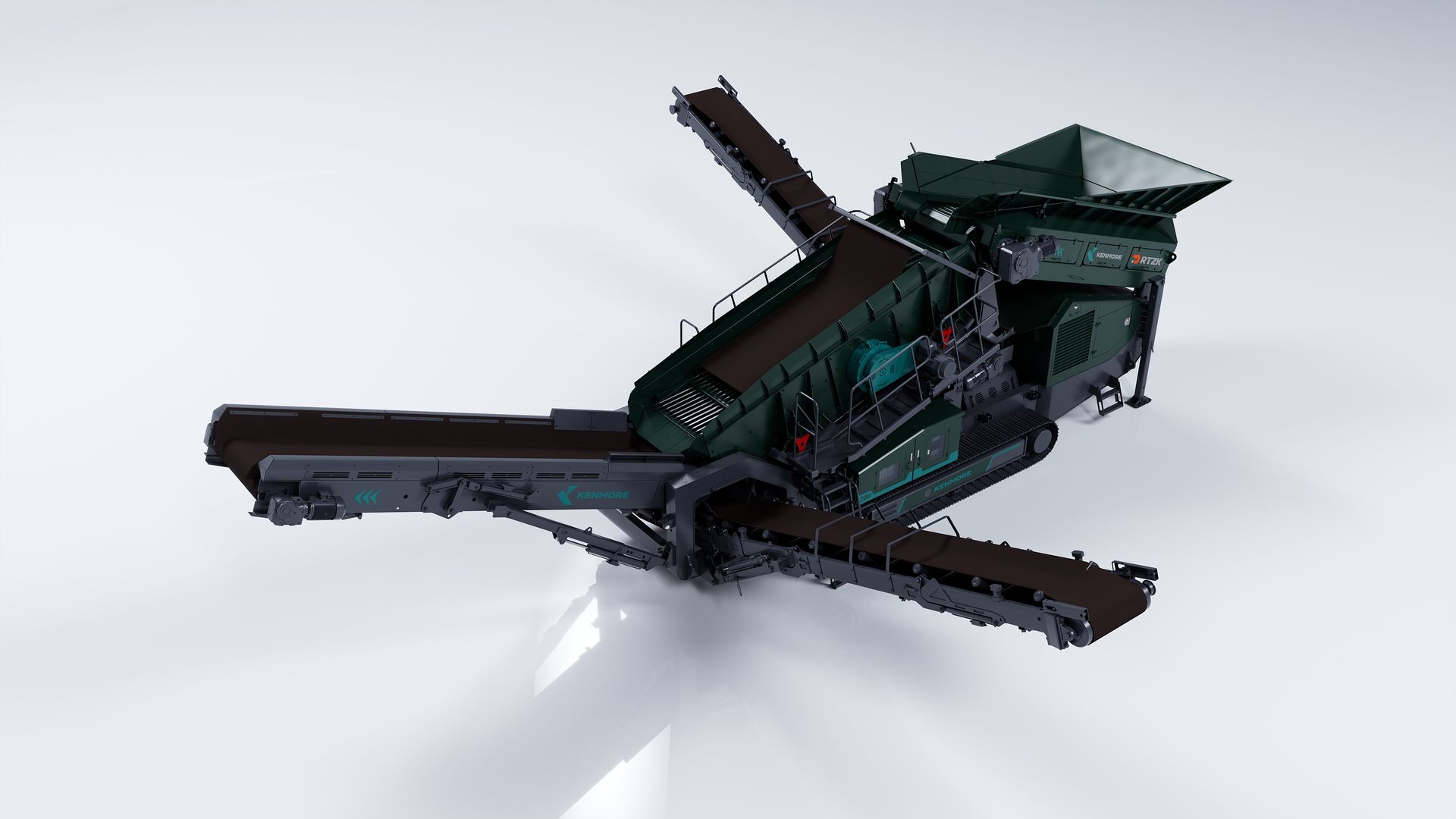

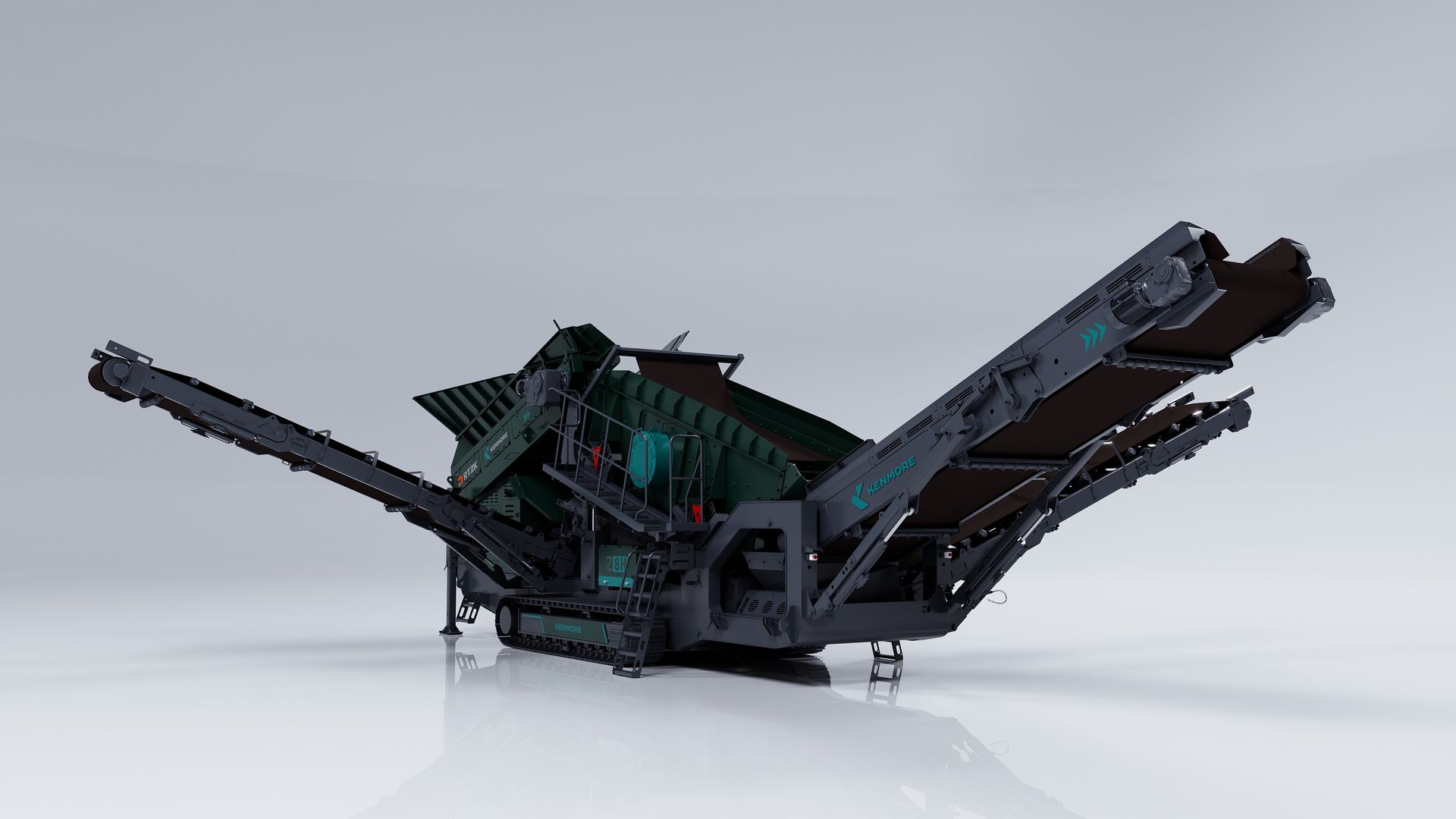

Z8H Mobile Scalper.

A scalping screen for the front of the circuit. Two decks take run-of-mine feed up to 500 mm and produce three products from one machine, removing fines and oversize before anything reaches a crusher. It carries the highest throughput in the range at 200–500 t/h.

Maximum feed sizE

500 mm

Capacity

200–500 t/h

Screening area

5 000 × 1 550 mm

Screen decks

2

Coarse material conveyor

1 200 mm belt, 2 × 5.5 kW

Medium material conveyor

800 mm belt, 7.5 kW

Fine material conveyor

800 mm belt, 7.5 kW

Under-screen conveyor

1 200 mm belt, 7.5 kW

Generator set

120 kW

Drive concept

Diesel-electric hybrid

Operating weight

37.5 t

Transport dimensions

15.6 × 3.3 × 3.6 m

Undercarriage

RTZK tracked chassis

light gold small line divider

..... TRACKED IMPACT

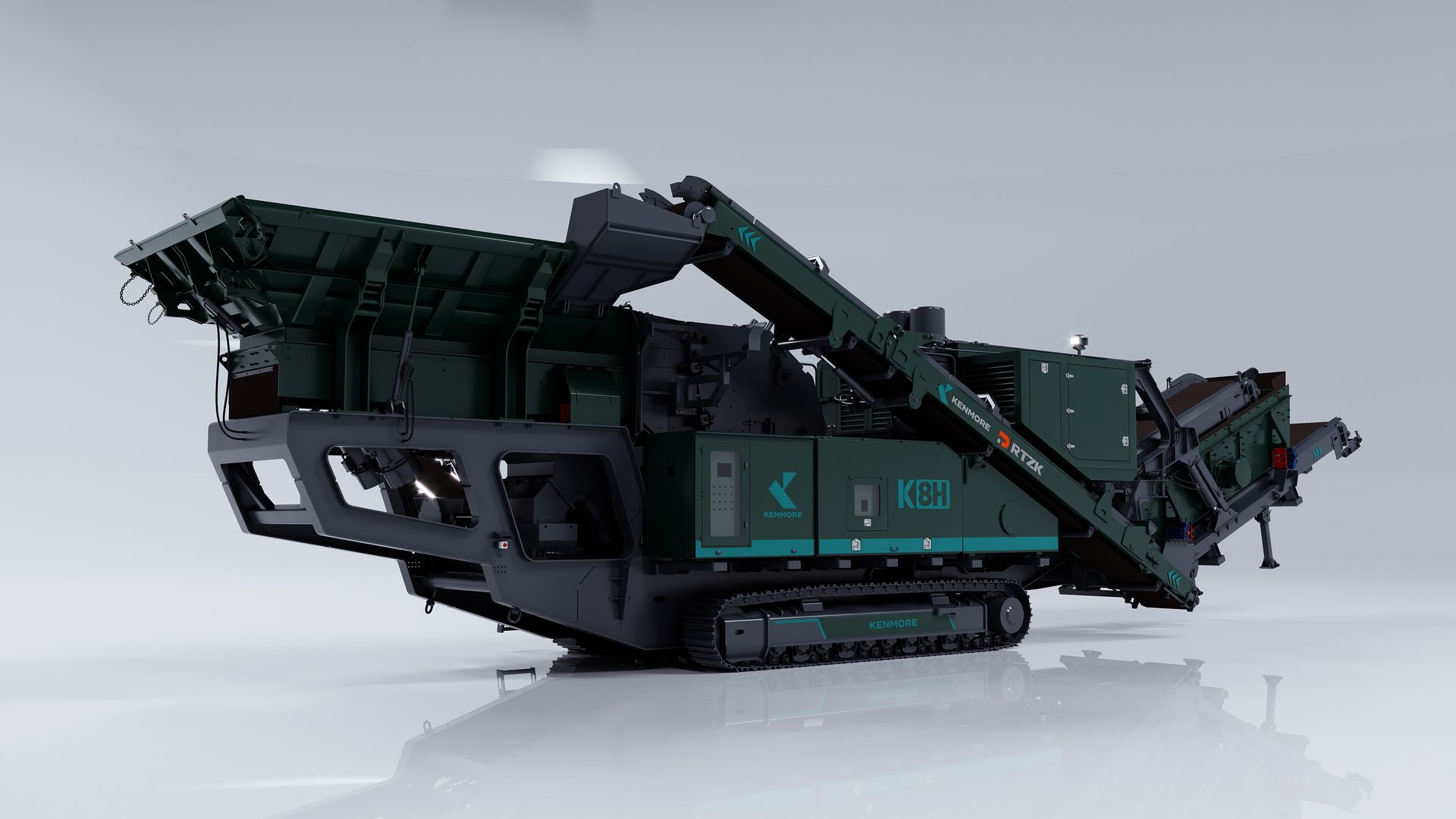

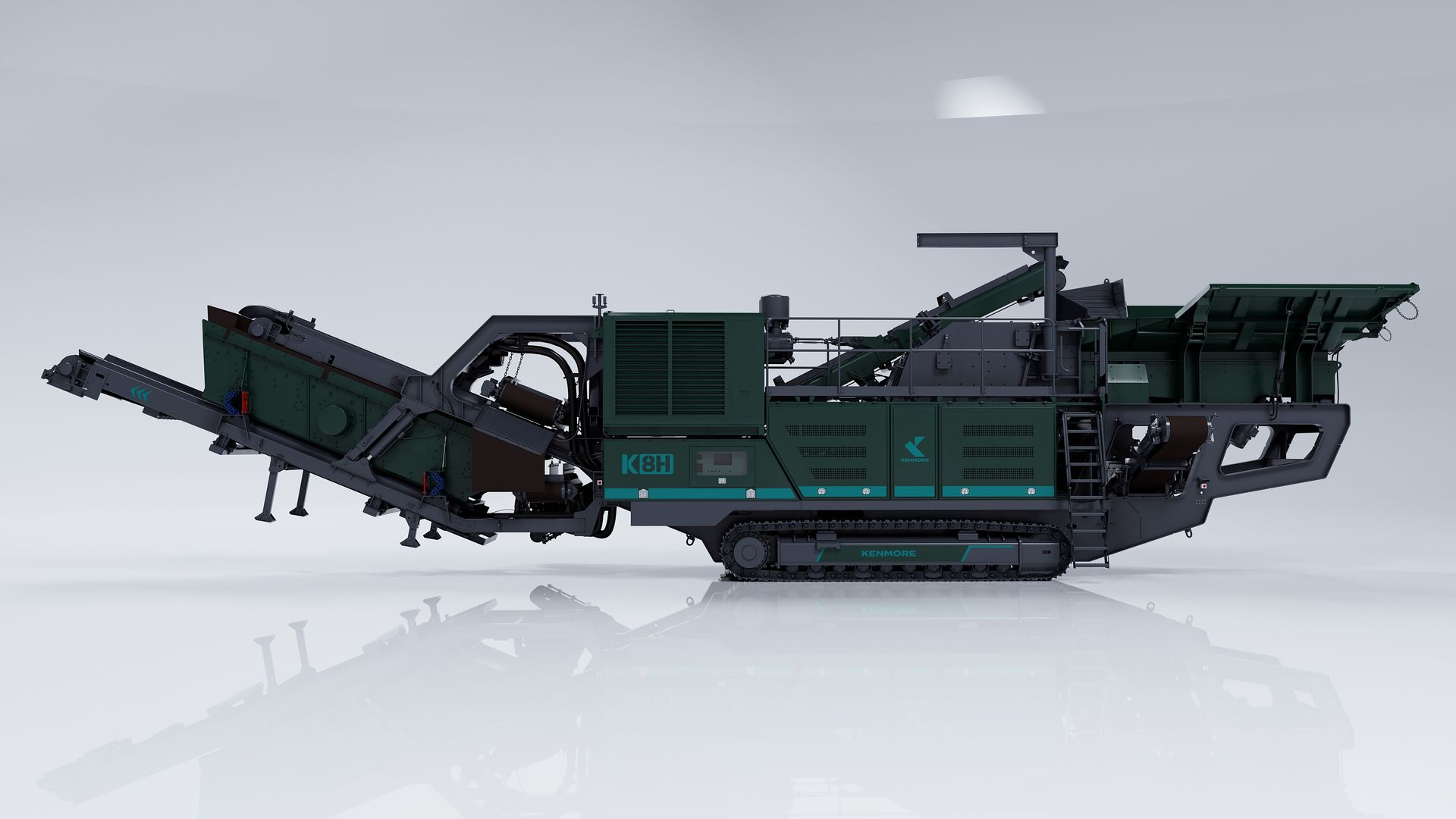

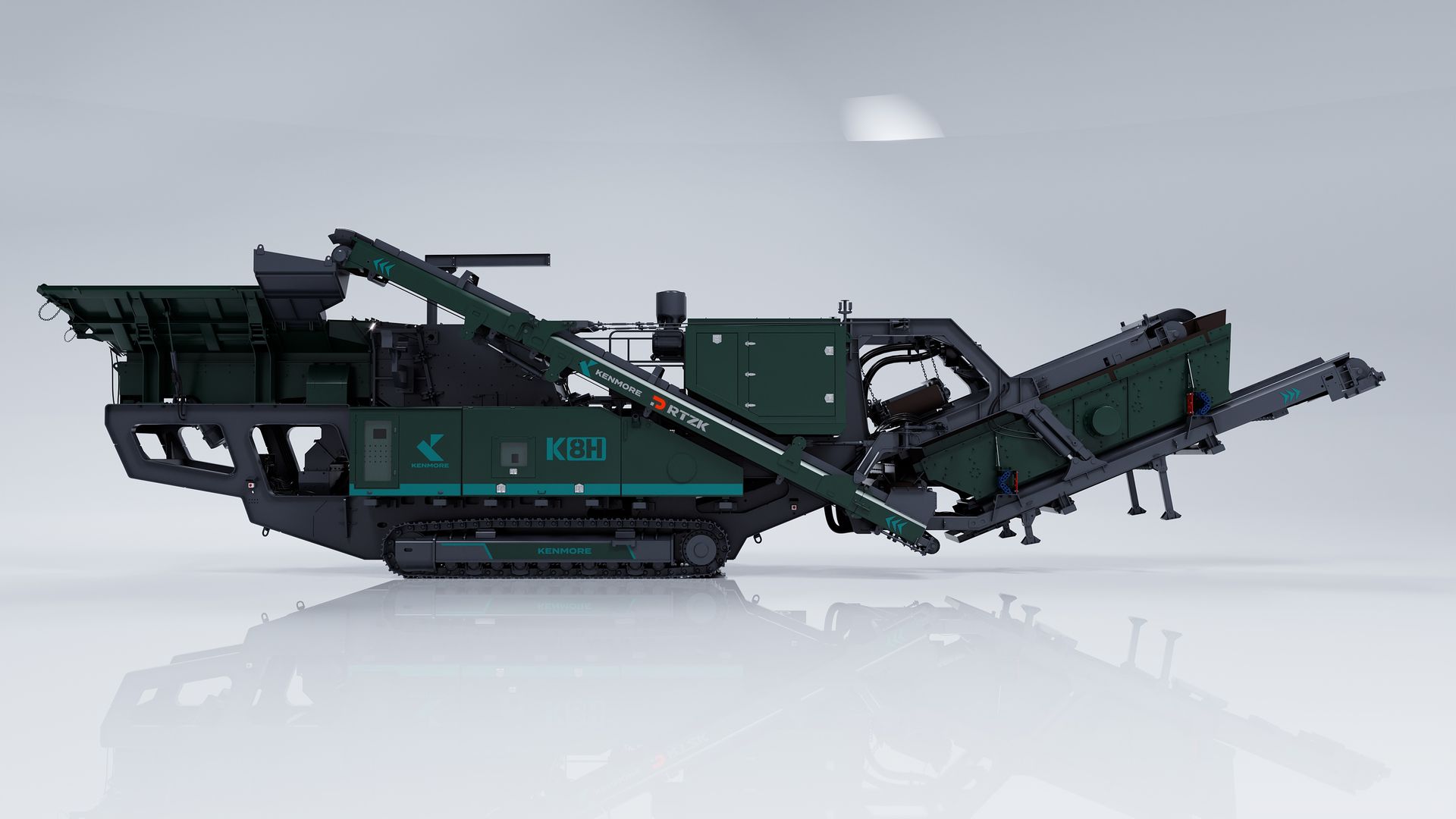

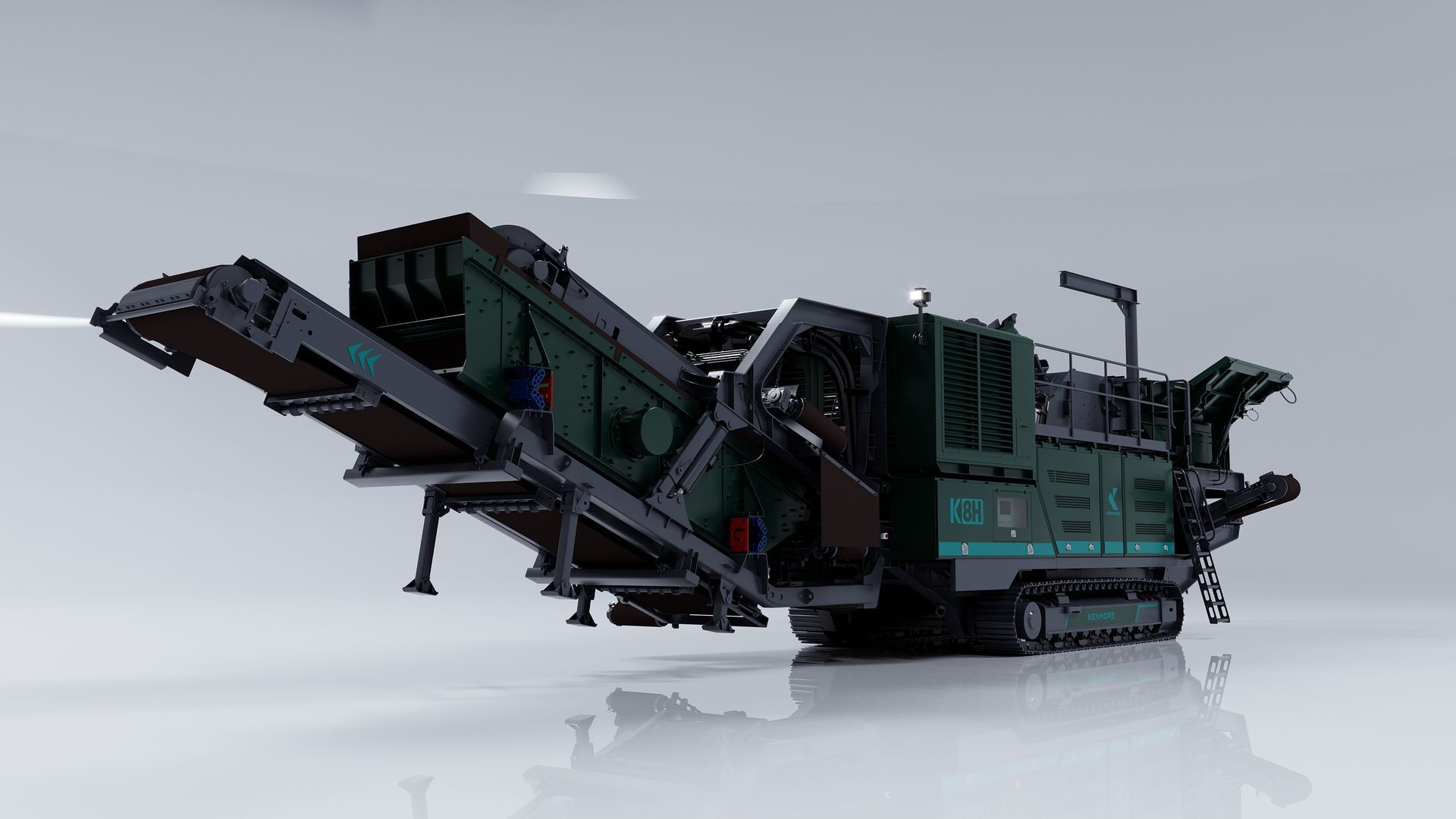

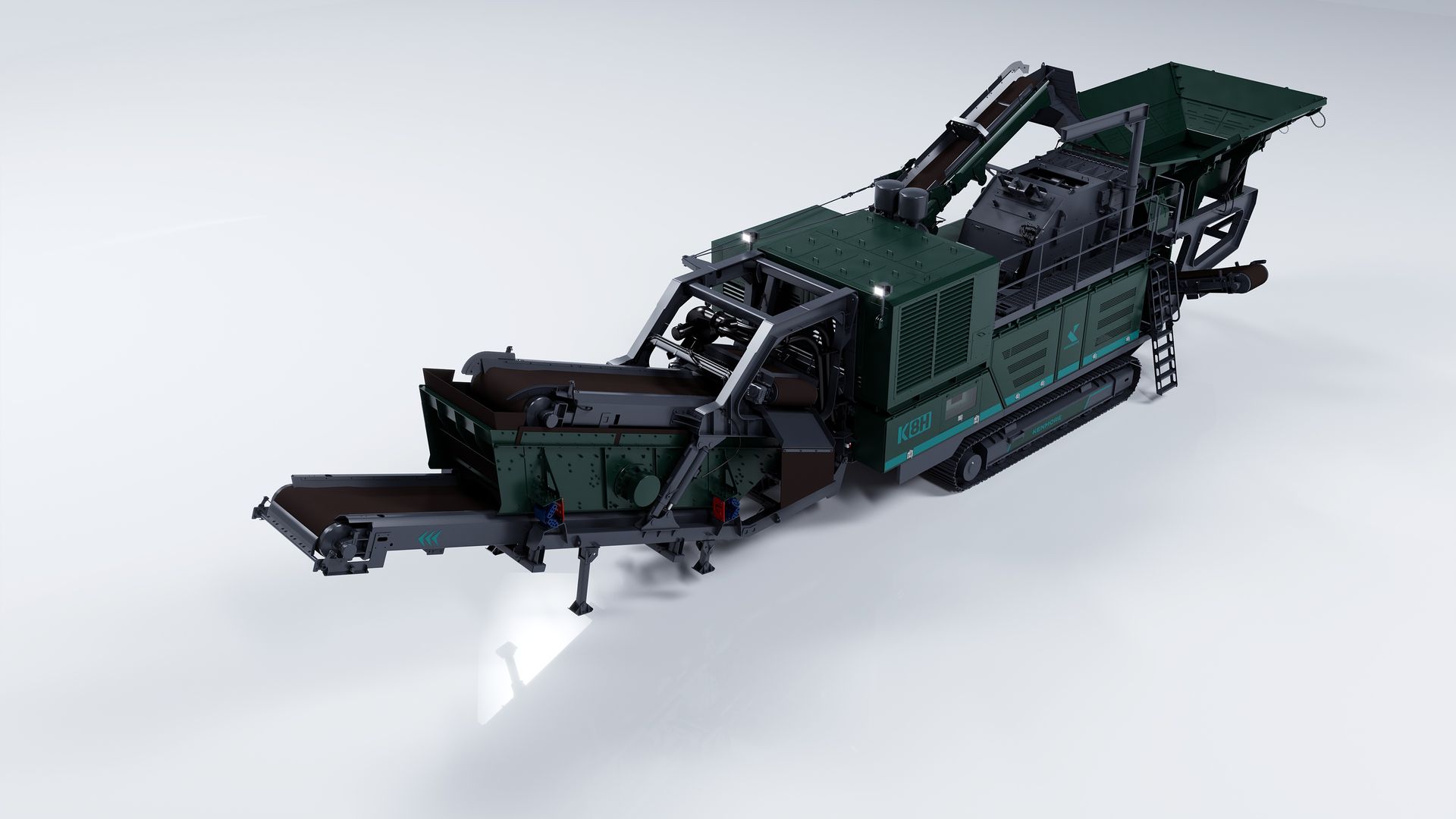

K8H Mobile Impact.

An impact plant for aggregates and recycled material, where product shape matters. A single-deck screen and return conveyor complete the closed circuit, returning oversize to the crusher for further reduction.

Maximum feed sizE

600 mm

Capacity

150–250 t/h

Hopper capacity

5 m³

Feeder motor

2 × 5.5 kW

Crusher motor

250 kW

Screening area

4 500 × 1 500 mm

Screen decks

1

Generator set

440 kW

Drive concept

Diesel-electric hybrid

Main conveyor

1 000 mm belt, 15 kW

Operating weight

68 t

Transport dimensions

20.0 × 3.9 × 3.8 m

Undercarriage

RTZK tracked chassis

light gold small line divider

..... THE RANGE

Six machines Every one a hybrid.

Jaw, cone and impact crushing, scalping and three-deck screening.

Model Type Max feed Capacity Operating weight
R6H Jaw crusher 500 mm 120–155 t/h 40 t
R8H Jaw crusher 700 mm 170–220 t/h 57 t
T8H Cone crusher 210 mm 120–200 t/h 61 t
K8H Impact crusher 600 mm 150–250 t/h 68 t
Z8H Scalping screen 500 mm 200–500 t/h 37.5 t
C8H Screen — 3 deck 150 mm 300 t/h 43 t

Reading the range. The letter is the machine — R jaw, T cone, K impact, C screen, Z scalping screen. The number is the size class. H denotes the diesel-electric hybrid drive, with an on-board generator set and the option of an external power connection.

Finance. Structured payment and finance options can be arranged on any machine in the range, subject to credit approval.

light gold small line divider

..... HOW IT IS BUILT

Kenmore where it counts.

The jaw and the cone are Kenmore units — our chamber, our profiles, our liners — drawn here and backed by the same Gauteng stock-holding and field service as every fixed plant we supply.

The carrier comes from a specialist manufacturer chosen for its record in exactly this field, because undercarriage is where mobile plant is won or lost. What stays in South Africa is the engineering that sizes the machine to your ore — and the accountability once it is running.
